High-Brightness, Energy-Saving Roadway Lighting with Superior Optics & Long Lifespan for Smart Urban Infrastructure
TY Series

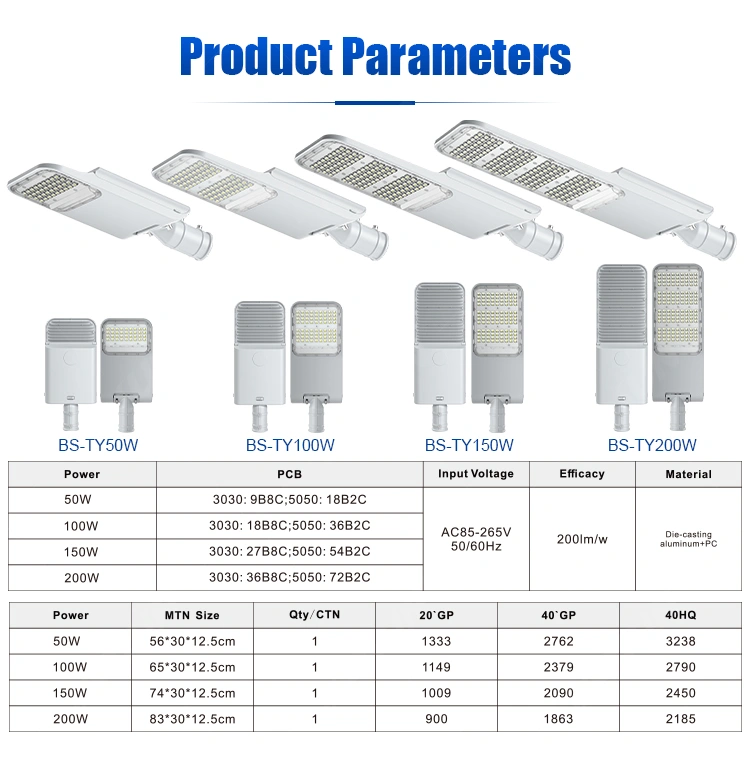

Power: 200W
PCB: 3030:36B8C;5050:72B2C
Input Voltage: AC85-265V50/60Hz
Efficacy: 200lm/w
Material: Die-casting aluminum+PC
PCB: 3030:36B8C;5050:72B2C
Input Voltage: AC85-265V50/60Hz
Efficacy: 200lm/w
Material: Die-casting aluminum+PC
Quantity

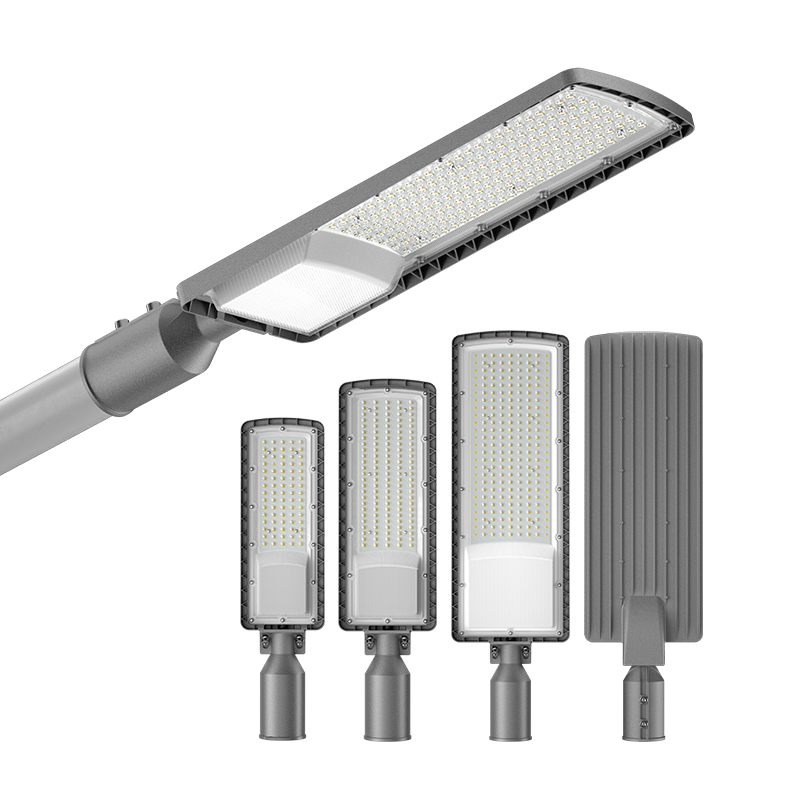

PremiumLED Street Light TY Series for Municipal Project
The TY Series LED Street Light is designed as a high-performance lighting solution for modern cities seeking reliable, energy-efficient roadway illumination. Engineered with premium LED chips, precision optical lenses, and an optimized thermal structure, the TY Series delivers exceptional brightness, uniformity, and long service life—significantly reducing energy consumption and maintenance costs for municipalities and engineering contractors.
This luminaire adopts a sleek, aerodynamic aluminum housing that enhances heat dissipation while providing robust protection against environmental stress. With multiple wattage options and beam-angle configurations, the TY Series can be applied across highways, urban streets, residential communities, industrial parks, and pedestrian pathways. Its smart-control compatibility—such as dimming, and optional intelligent lighting modules—supports the development of sustainable, data-driven smart city infrastructure.
Key Technical Advantages of TY-Series LED Street Light
High-Efficacy LED Chips
Utilizes premium SMD/COB LEDs delivering high lumen output and superior energy efficiency.
Utilizes premium SMD/COB LEDs delivering high lumen output and superior energy efficiency.
Maintains consistent color temperature and minimal lumen depreciation over time.

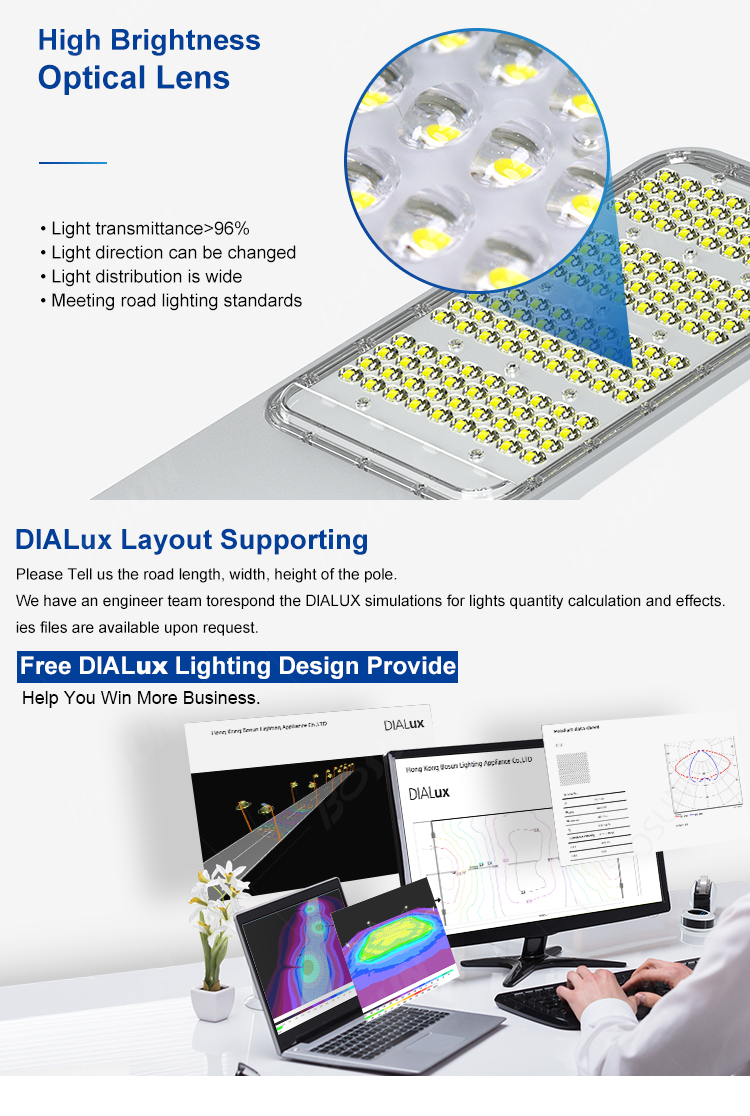

Precision Optical Lens System
Advanced optical distribution ensures uniform, glare-free illumination.
Advanced optical distribution ensures uniform, glare-free illumination.
Multiple beam-angle options tailored for roads, intersections, residential areas, and pedestrian zones.
Optimized Thermal Management
Die-cast aluminum body with enhanced heat-sink structure.
Die-cast aluminum body with enhanced heat-sink structure.
Ensures low junction temperature for longer LED lifespan.
Intelligent Lighting Compatibility

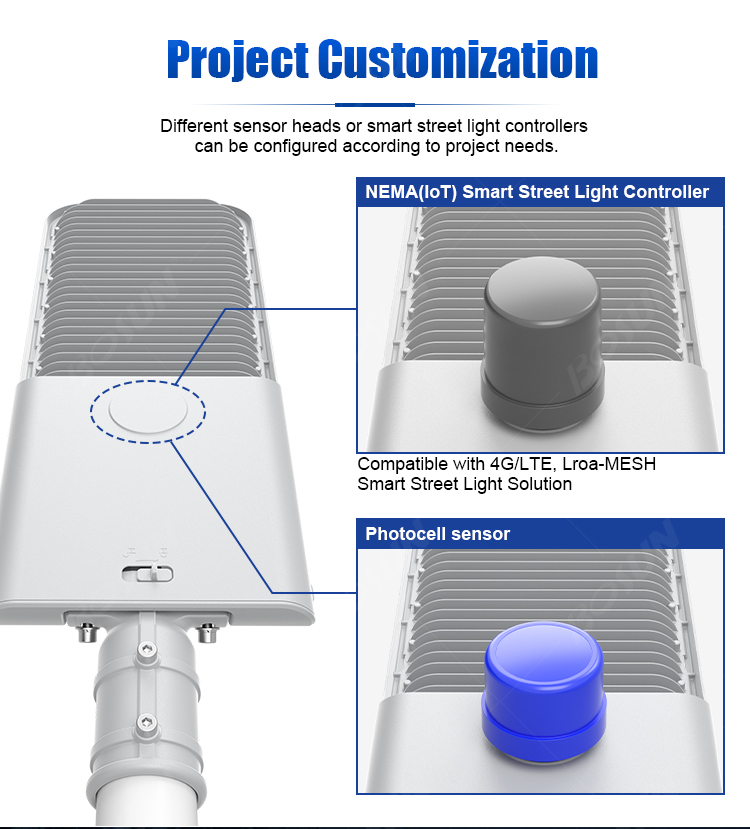

Supports 0–10V/PWM dimming, DALI systems, and smart city controllers.
Supports 0–10V/PWM dimming, DALI systems, and smart city controllers.
Optional sensors enable adaptive dimming, energy saving, and remote monitoring.
Robust Outdoor Durability
IP66 waterproof rating resists rain, dust, and humidity.
IP66 waterproof rating resists rain, dust, and humidity.
IK08/IK10 impact resistance protects against vandalism and physical damage.
High corrosion resistance suitable for coastal, tropical, and industrial zones.
Electrical Safety & Surge Protection
Built-in SPD up to 10kV/20kV for grid instability protection.
Built-in SPD up to 10kV/20kV for grid instability protection.
High power factor and low THD ensure stable, efficient power usage.
Flexible Installation & Maintenance

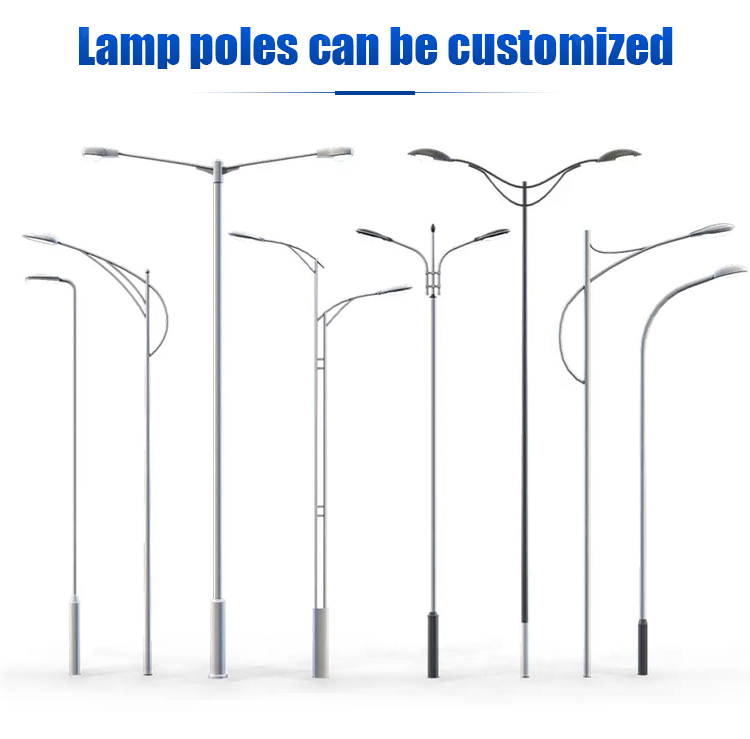

Compatible with standard pole arms and brackets.
Compatible with standard pole arms and brackets.
Tool-free access options available for simplified servicing.
Multiple wattage and configuration choices for diverse project requirements.
Frequently Asked Questions (FAQs) – TY Series LED Street Light
What wattage options are available for the TY Series LED Street Light?
The TY Series offers a wide wattage range—typically from 30W to 200W—to meet different road classifications and project requirements. Lower wattages suit residential roads, while higher wattages are ideal for highways and major urban routes.
The TY Series offers a wide wattage range—typically from 30W to 200W—to meet different road classifications and project requirements. Lower wattages suit residential roads, while higher wattages are ideal for highways and major urban routes.
What is the lumen output of the TY Series?
Depending on the configuration, the TY Series delivers 130–170 lm/W, offering high illumination efficiency and excellent uniformity for safer night visibility.
Depending on the configuration, the TY Series delivers 130–170 lm/W, offering high illumination efficiency and excellent uniformity for safer night visibility.
Is the TY Series suitable for highways and large public roads?
Yes. With high lumen output, multiple beam-angle choices, and durable construction, the TY Series is designed for highways, main roads, industrial parks, and long-distance corridors.
Yes. With high lumen output, multiple beam-angle choices, and durable construction, the TY Series is designed for highways, main roads, industrial parks, and long-distance corridors.
What optical lens options are available?
The luminaire provides type I, II, III, IV, and V optical distributions, allowing precise lighting design for different road widths and installation heights.
The luminaire provides type I, II, III, IV, and V optical distributions, allowing precise lighting design for different road widths and installation heights.
Can this LED street light be integrated into smart lighting systems?
Absolutely. The TY Series is compatible with 0–10V dimming, PWM, DALI, and optional smart controllers (LoRa, Zigbee, NB-IoT) for adaptive lighting and remote monitoring.
Absolutely. The TY Series is compatible with 0–10V dimming, PWM, DALI, and optional smart controllers (LoRa, Zigbee, NB-IoT) for adaptive lighting and remote monitoring.
What is the expected lifespan of the LED module?
The TY Series uses high-quality LED chips with an L70 lifespan exceeding 50,000–100,000 hours, depending on the selected model and operating environment.
The TY Series uses high-quality LED chips with an L70 lifespan exceeding 50,000–100,000 hours, depending on the selected model and operating environment.
What is the waterproof and impact-resistance rating?
The luminaire is designed for harsh outdoor conditions with:
IP66 waterproof rating
IK08/IK10 impact resistance
These certifications ensure reliable operation in rain, storms, dust exposure, and high-traffic environments.
The luminaire is designed for harsh outdoor conditions with:
IP66 waterproof rating
IK08/IK10 impact resistance
These certifications ensure reliable operation in rain, storms, dust exposure, and high-traffic environments.
How does the thermal management system work?
A die-cast aluminum housing with reinforced heat-sink fins enhances heat dissipation. This keeps the LED junction temperature low, prolonging system lifespan and maintaining optimal brightness.
A die-cast aluminum housing with reinforced heat-sink fins enhances heat dissipation. This keeps the LED junction temperature low, prolonging system lifespan and maintaining optimal brightness.
What type of surge protection does the TY Series include?
Built-in 10kV or optional 20kV SPD provides strong protection against lightning strikes and unstable grid voltage—especially important for regions with unreliable power infrastructure.
Built-in 10kV or optional 20kV SPD provides strong protection against lightning strikes and unstable grid voltage—especially important for regions with unreliable power infrastructure.
Is installation complicated?
No. The TY Series supports universal pole-arm mounting, adjustable installation angles, and quick-access design, making it easy for contractors and installers to deploy.
No. The TY Series supports universal pole-arm mounting, adjustable installation angles, and quick-access design, making it easy for contractors and installers to deploy.
Can the TY Series replace existing HPS or metal halide fixtures?
Yes. It is designed as a direct retrofit solution, offering better brightness, longer lifespan, and up to 70% energy savings compared with traditional HID lamps.
Yes. It is designed as a direct retrofit solution, offering better brightness, longer lifespan, and up to 70% energy savings compared with traditional HID lamps.
What materials are used for the housing?
The luminaire features a corrosion-resistant die-cast aluminum body with high-quality powder coating—ideal for coastal, tropical, and industrial environments.
The luminaire features a corrosion-resistant die-cast aluminum body with high-quality powder coating—ideal for coastal, tropical, and industrial environments.
What color temperatures are available?
Standard color temperatures include 3000K, 4000K, 5000K, and 6500K, allowing customization for different lighting atmospheres and compliance with local municipal standards.
Standard color temperatures include 3000K, 4000K, 5000K, and 6500K, allowing customization for different lighting atmospheres and compliance with local municipal standards.
Do you provide photometric files (IES/LDT)?
Yes. Full IES, LDT, and lighting simulation support (Dialux/Relux) is available for engineering design and project tender submissions.
Yes. Full IES, LDT, and lighting simulation support (Dialux/Relux) is available for engineering design and project tender submissions.
What is the warranty for the TY Series LED Street Light?
The product typically includes a 3–5 year warranty (extendable to 7–10 years depending on configuration and project needs).
The product typically includes a 3–5 year warranty (extendable to 7–10 years depending on configuration and project needs).
