Over-the-Air

Updates

4G, 3G, WiFi,

Ethernet Connection

Auto Network

Configuration

IP 67 +

UV Protection

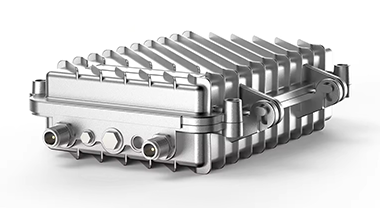

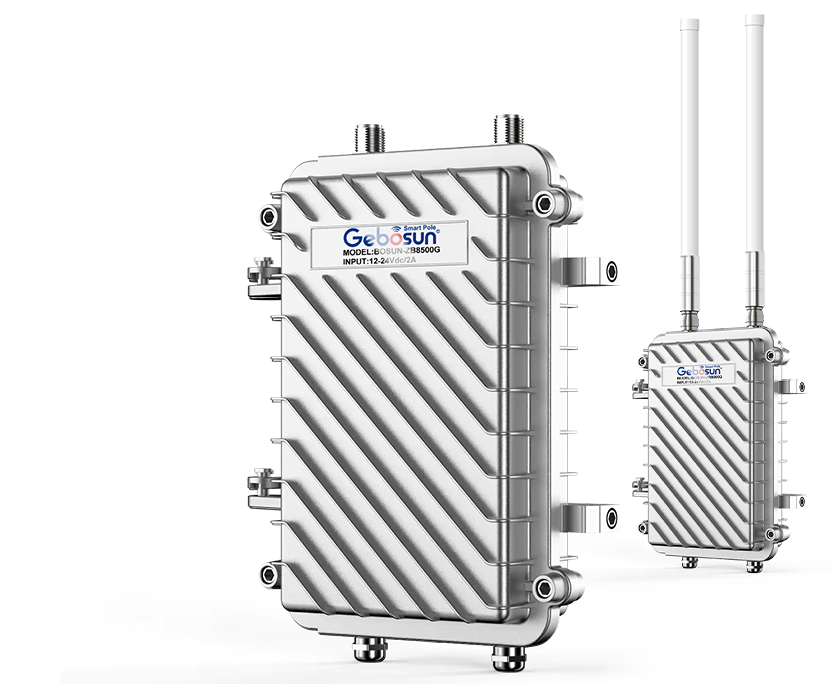

Gebosun® Gateway for Smart Street Lights

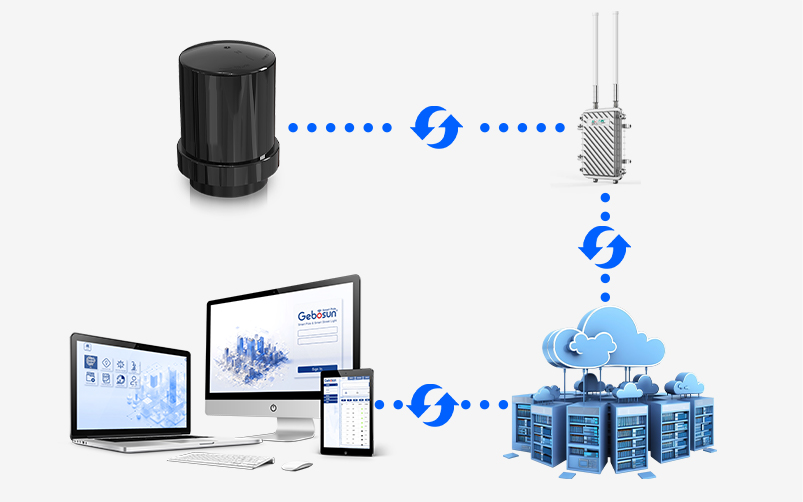

The Gebosun® wireless access point gateway in a smart solar street light system acts as a communication bridge between the street lights and the smart city control system. It gathers data from multiple street lights, such as energy usage, lighting performance, operating status, and system health, and transmits this information to the central control system. The gateway enables remote monitoring and control, facilitating functions like dimming, scheduling, and fault detection. Its usage ensures efficient energy management and allows for smart lighting adjustments based on environmental and operational conditions.

Data Monitor

Energy Consumption: Tracks how much energy each street light is using.

Lighting Status: Monitors whether the lights are on, off, or dimmed and adjust brightness.

Fault Detection: Detects issues such as malfunctioning street lights or system errors.

Environmental Conditions: Records data like ambient light levels or weather conditions.

Battery Health: Monitors the charge/discharge status and overall health of solar-powered street lights.

Self-Forming

Self-Healing Network

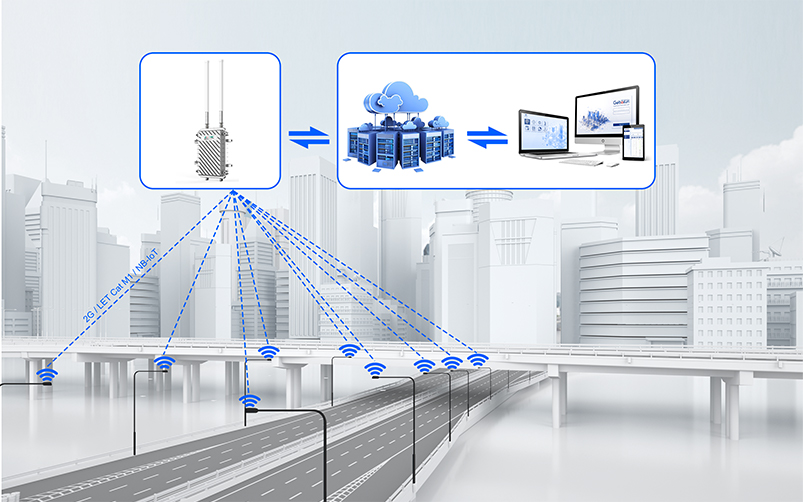

A Self-Forming, Self-Healing Network of gateways refers to an intelligent system where smart street lights automatically connect and communicate with one another without manual configuration. If one gateway fails or loses connection, the network can self-heal by rerouting data through other functioning gateways, ensuring continuous communication. This ensures reliability, robustness, and scalability, as new lights can be added easily, and the system remains operational even during network failures, optimizing energy use and reducing maintenance needs.

Over-the-Air Updates

Keep your smart street lighting infrastructure normally operating with enhancing functionality updates deployed directly to the Gebosun® gateway over the air.

This method saves labor and time, ensuring that the system stays up to date with the latest functionalities and security protocols. Remote updates help maintain the efficiency and security of smart street light systems, reducing operational downtime and costs.

Highly secure

- Gateway to Device communication uses 128-bit encryption

- Gateway to Light Management software communication uses Secure WebSocket (WSS Protocol RFC 6455)

MAIN CAPABILITIES

- Control large numbers of intelligent wireless lighting nodes per gateway

- Designed for outdoor application scenarios

- No-latency communication via Ethernet (LAN) or cellular

- BACnet compatible

Supports various operating frequencies such as CN470MHz / US915MHz / EU868MHz

Support 8 channels of concurrent, the number of accessible nodes is up to 300
The farthest transmission distance is 15Km (line of sight), 1.5Km (city distance)
Support multiple network access methods such as 2G/3G/4G and LAN

support transmission and reception of full-duplex LoRa communication

Follow LoRa-MESH wireless transmission protocol

Effective lightning protection grounding protection

Sensitivity dropped to -142.5dBm

12V~36V wide voltage DC input

Adaptive data transfer rate

Output power up to 23dBm

Multiple Connectivity Options

A gateway for smart street lights supports multiple connectivity options to ensure flexibility and integration with various communication networks.

Ethernet

GPRS/EDGE/LTE

Robust

The robustness of Gebosun® gateway in a smart street lighting system refers to its ability to perform reliably under various conditions. A robust gateway ensures durability, reliable communication, self-healing capability, security, and scalability.
