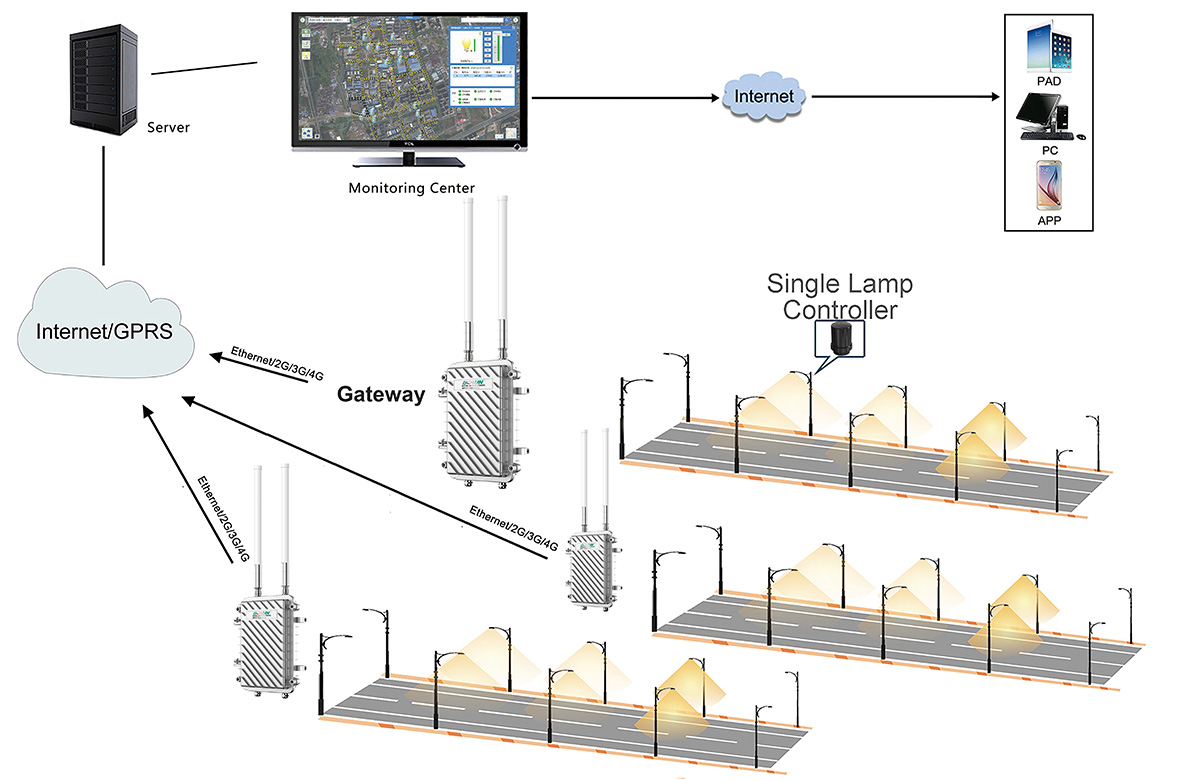

Gebosun® Lighting LoRa-MESH Compatible System Architecture
Wireless Communication
Mesh, point-to-point communication distance ≤150 M, Data transfer rate, 256 KBPS; IEEE 802.15.4 physical layer
Centralized Controller
The number of terminals that can be controlled by the centralized controller is less than 50
2.4G band
2.4 G band defines 16 channels, each channel's central frequency difference is 5 MHZ, 2.4 GHz ~ 2.485 Ghz
915M band
There are 10 channels defined in the 915M band, the center frequency difference of each channel is 2.5 Mhz, 902MHz ~ 928MHz
Communication rate 256Kbps
Communication distance 1M to 3KM (city area)
Multi-control mode Holiday mode, latitude and longitude mode, mult-strategy control mode
Topological structure Self-grouping MESH (frequency 2.4GHz/915MHZ/868MHz/470MHz)
System composition SCCS(mart City Control System)+concentrator+gateway+Lamp Controller
Multi-control mode Multi-loop control, multi-terminal group control, support for broadcast, multicast unicast control
Multifunctional options NEMA interface, GPS positioning, tilt detection, light control function.terminal self-running tasks
Management system GlS map, mult-language switching, real-time control display, energy consumption report fault alarm, user rights management

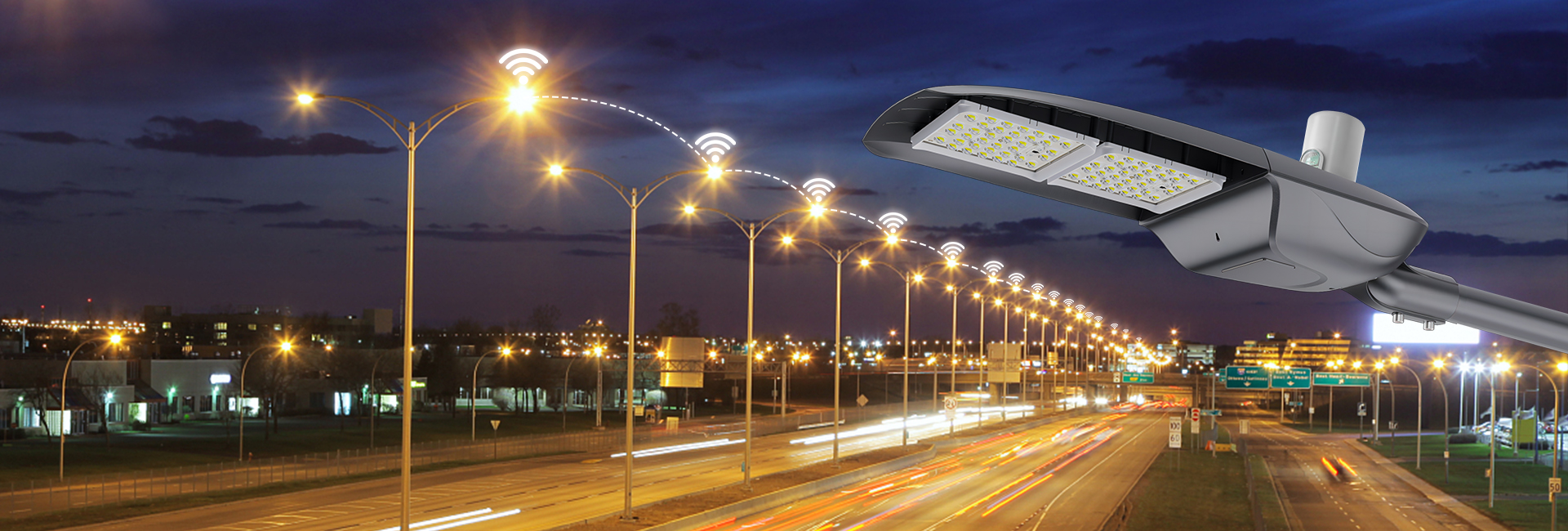

Lora-Mesh solution smart street light consists of a centralized controller and a single lamp controller. The lamp controller is linked to the LED driver of the street light. Then communicate with the RTU centralized controller, so as to realize the centralized control of the street light by the Gebosun® SSLS system. A system that connects the streetlights of blocks via wireless communication, especially for major projects. LoRa-MESH solution will play a major role in it, for its more stable signal transmission performance. It's a mature platform that helps intelligent management of lights on urban roads. Helping to improve energy saving, and increase public safety and security.
A system that connects the streetlights of blocks via wireless communication, especially for major projects. LoRa-MESH solution will play a major role in it, for its more stable signal transmission performance. It's a mature and smart platform that helps intelligent management of lights on urban roads. An intelligent control system for the city, through a user-friendly interface accessible via iPad, mobile applications, or other operating platforms, administrators can remotely command individual streetlights, toggling them on or off with precision. Moreover, the system's advanced diagnostics capabilities enable swift identification and localization of faulty streetlights, streamlining maintenance efforts and reducing operational costs. Central to this network architecture is the gateway, a pivotal node facilitating seamless communication between disparate networks. Gateways serve as an entry, and the signal is initiated from the gateway to the Gebosun® Lamp Controller, then transformed to the controller to control the whole system. LoRa-MESH solution is dedicated to elevating the quality of city life and enhancing the urban experience while fostering sustainability. Dedicated to enhancing the urban experience while fostering sustainability, This solution seamlessly integrates various technologies with LoRa-MESH infrastructure, offering a versatile solution adaptable to diverse lighting requirements. Whether implementing standardized solutions or tailoring bespoke projects to specific needs, Gebosun® LoRa-MESH solution stands as a beacon of innovation, ushering cities towards a more intelligent, eco-conscious future.
Gebosun® Lighting LoRa-MESH compatible lamp controllers
(1)Remote management of streetlight lamps with electronic ballast up to 600W.
(2)Specially designed and optimized for LoRa-MESH networks.
(3)Autonomous operation based on predefined schedules, light level sensors, and adaptive lighting.
(4)Wide range of electrical parameters monitoring.
(5)Advanced data synchronization and notification mechanism.
(6)Based on multiple standard protocol interface bases: NEMA/ZHAGA/Electronic Ballast/LTE(4G) Integrated Power Supply.
Gebosun® Lighting LoRa-MESH compatible devices
A gateway can manage nodes within 2km in diameter Stable communication technology of Lora with low power consumption and long-distance multi nodesSingle control, timing, dimming, electricity collection, current and voltage monitoring, abnormal reports and other functions support remote operation of mobile phone terminal. mobile phone terminal and fablet ferminal.
Gebosun® ZHAGA IoT module is a communication module that can be adapted to the smart street light controller, the module has a 4G Cat.1 communication function, which can remotely connect to the server in the cloud, and the module has serial (UART) TTL level/RS485 communication interface, which can complete the sending and reading of parameters and status of the controller.
A special Wi-sun gateway for street lamps. The centralized controllers support mesh topology. The terminal is equipped to upload data to the gateway through RF signals. and the gateway centralized controller uploads the information uploaded by the terminal to the server through 4G or Ethernet, which makes the communication range wider. Therefore, the deployment of repeaters can be greatly reduced in the solution, making the solution cheaper and simpler to deploy.
Centralized Controller is the key equipment in intelligent street lamp control system. Through the downlink channel for single light control and collection of power parameters, while collecting 485 device data; At the same time through the uplink GPRS channel or Ethernet and the main station platform or handheld device data exchange, its uplink channel adopts public communication network, support client, server two communication modes.
Core Equipment

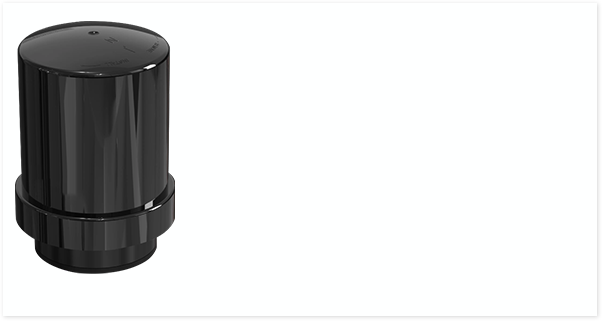

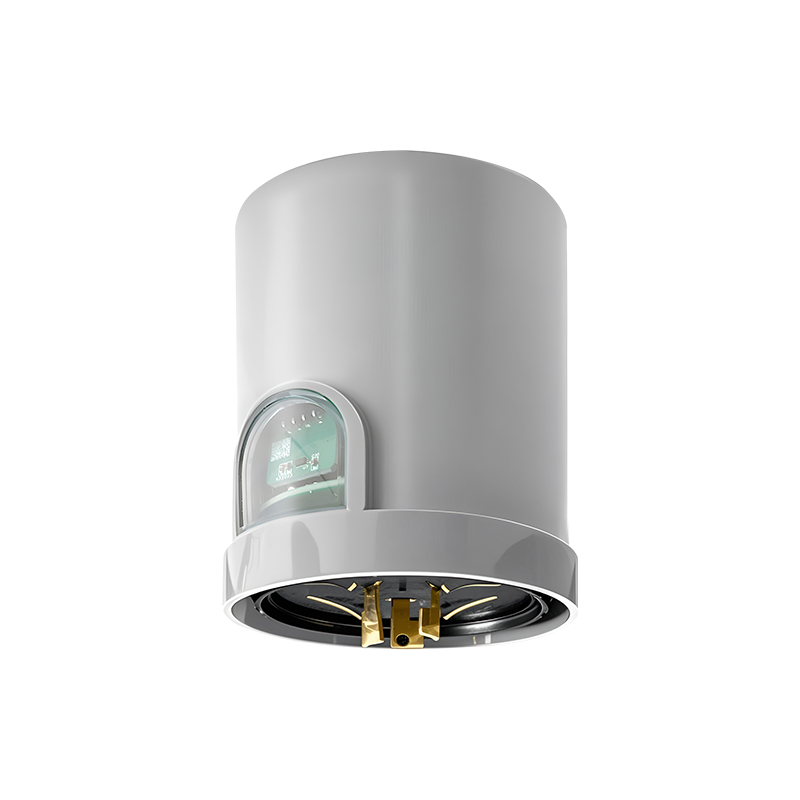

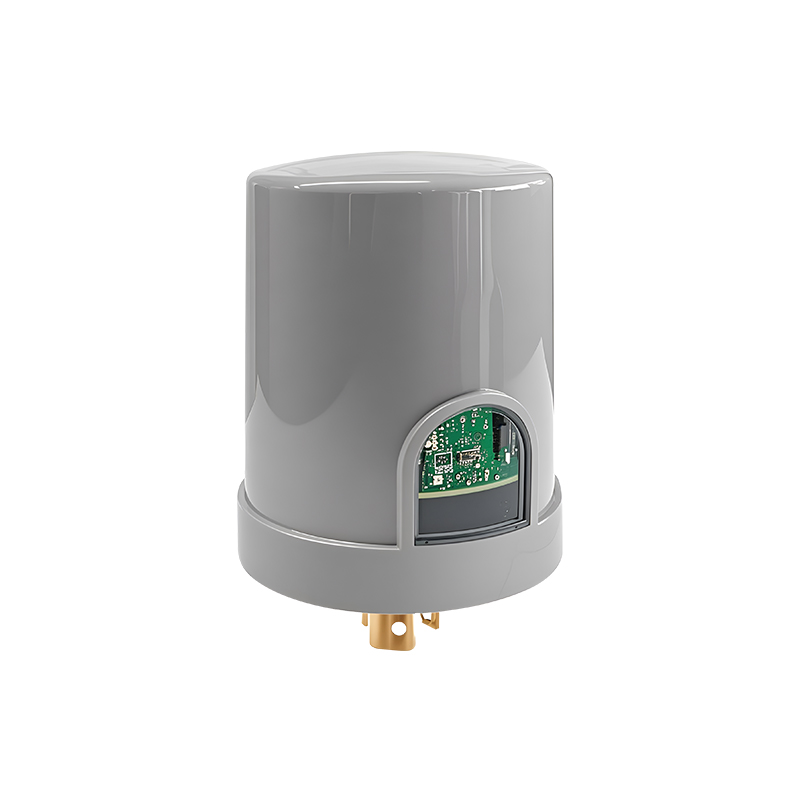

NEMA Single Lamp Controller
A lamp controller linked with LED driver, communicates with LCU by Lora. Remotely turn ON/OFF, dimming(0-10V/PWM), lightning protection, lamp failure detection, 96-264VAC, 2W.
-Customized communication protocol based on LoRa.
-Standard NEMA 7-PIN interface, plug and play.
-Remotely turn on/off, built-in 16A relay.- Photocell auto control.
-Support dimming interface: PWM and 0-10V.
-Remotely read electrical parameters: current, voltage, power, power factor,and
consumed energy.
-Support recording total energy consumed and resetting.
-Optional sensor: GPS, tilt detection.
-Lamp failure detection: LED lamp.
-Automatically report failure notifications to the server.
- Lightning protection.
-IP65
BS-Xi LP 100W/150W/200W
-Ultimate robustness, offering peace of mind and lower maintenance costs
-Long lifetime and high survival rate- Energy savings through high-efficiency
-Balanced configurable feature set covering the most common applications
-Superior thermal management- Consistent waterproof performance through the lifecycle
-Easy to design, configure, and install for Class I applications
-SimpleSet®, wireless configuration interface- High surge protection
-Long lifetime and robust protection against moisture, vibration and temperature-Configurable
operating windows(AOC)
-External control interface (1-10V) available
-Digital Configuration Interface (DCI) via MultiOne Interface- Autonomous or Fixed time-based
(FTBD) dimming via integrated 5-step DynaDimmer
-Programmable Constant Light Output (CLO)
-Integrated Driver Temperature protection

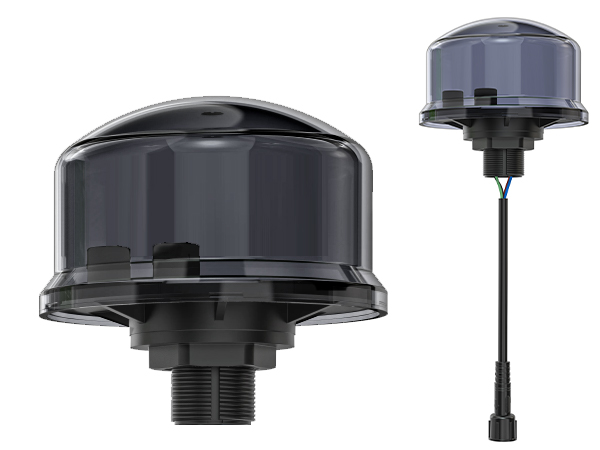

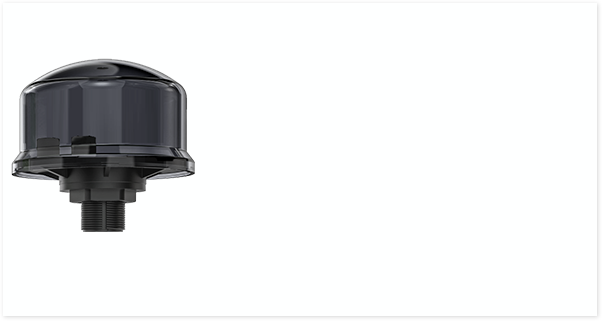

ZHAGA Single Lamp Controller
-Support B1/B3/B5/B8/B20/B28 @LTE-FDD
-With standard ZHAGA 4-PIN interface, plug and play
-Support DALI 2.0 protocol;
-Failure detection: lamp failure, power failure, over voltage, over current, under voltage, power
outrage
-Automatically report faillure notification to server and all triggerth resholds are configurable.
-Built-in power meter, support remotely read real-time status and parameters like voltage,
current, power and energy etc;
-Built-in RTC, support scheduled task;
-Built-in photocell, auto control via lux value ;
-Built-in GPS, auto positioning;
-Optional configuration: tilt sensor, temperature sensor;
-Specially optimized for Philips Xitanium SR LED driver.
-Lightning protection & IP66 waterproof;
-Support onine firmware upgrading(OTA).

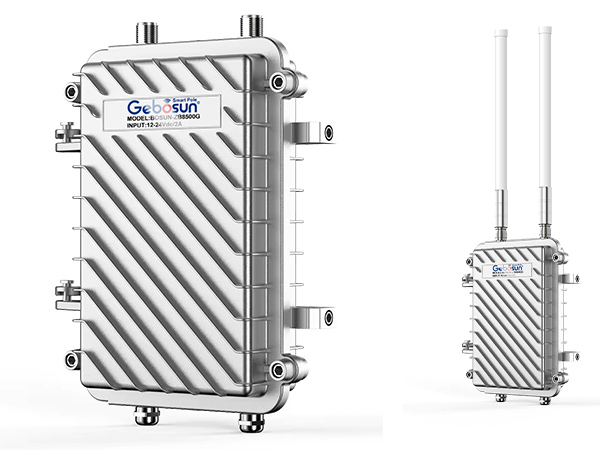

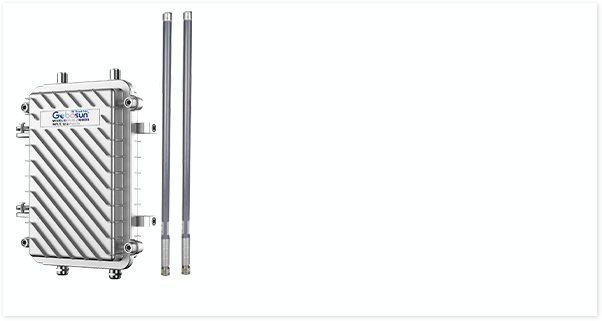

Gateway
The centralized controller supports mesh topology. The terminal is equipped to upload data to the gateway through RF signals.and the gateway centralized controller uploads the information uploaded by the terminal to theserver through 4G or Ethernet, which makes the communicationrange wider.
-Support 2G/4G/ network port TCP/IP two network connection modes.
-Adaptive data transmission rate
-The product supports 12V/24V power supply
-The network coverage of a single gateway is about 1KM, and the number of sub-
nodes coveredis about 100
-The lightning protection level can reach 3KV.
-Support 433MHz 930MHZ and other working frequencies.
-The hardware has local strategy storage function, which can ensure the lamps to
switch on andoff normally.
-Hardware with clock chip, with automatic clock timing function.
-Sealed design, dustproof and waterproof.
Centralized controller
Concentrator,a communication bridge between server (2G/4G/Ethernet) and single lamp controller(by LoRa MESH).Built-in LCD dispaly and smart meter, support 4 digital switch, update by OTA,100-500VAC,2W,IP54.
- LCD display.
- High-performance 32-bit industrial-grade based on ARM9 CPU as the micro-controller.
- Using high reliable platform for the application as an embedded Linux operating system.
- Attached with 10/100 m Ethernet interface, RS485 interface, USB interface, etc.
- Support GPRS (2G) communication mode, Ethernet remote communication methods and can be extended to 4G full network communication.
- Upgrading local/remotely: serial port/USB disk, internet/GPRS.
- Built-in smart meters to realize remote electric energy meter reading, at the same time, support remote electricitymeter reading for external meter.
- Built-in high-performance RS485 communication module, to achieve intelligent tunnel lighting control.
- 4 DO, 6 DI (4 Switch IN+2AC IN).
- Fully sealed enclosure, strong anti-interference ability, withstand high voltage, lightning, and high frequency signal interference
