Power: 30W 40W 60W 80W 100W
Battery: 48Ah/3.2V 80Ah/3.2V 100Ah/3.2V 50Ah/12V 80AH/12V
Solar Panel: 60W/18V 80W/18V 100W/18V 150W/18V 200W/18V
Battery Structure: Built-in Battery External Battery
Lamp Size: 500*205*80mm 620*320*100mm
CCT: 6000K
Lumens(LM): 180lm/W
Beam Angle: 70°*150°
Working Time: 12hrs 365days
Housing: Die-casting aluminum
Controller: Patent Pro-Double MPPT Solar Charge Controller

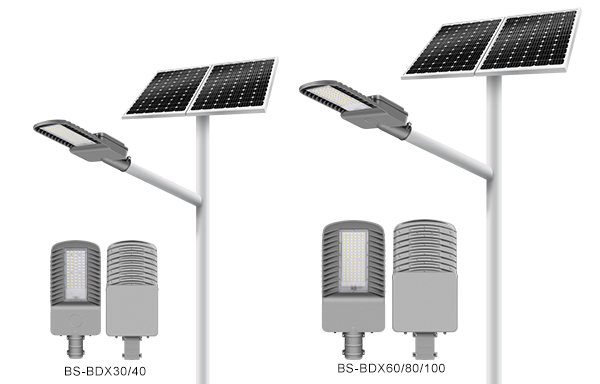

Street Solar Light Details & Features
| Model | BS-BDX 30 | BS-BDX 40 | BS-BDX 60 | BS-BDX 80 | BS-BDX 100 |
| Power | 30W | 40W | 60W | 80W | 100W |
| Battery | 48Ah/3.2V | 80Ah/3.2V | 100Ah/3.2V | 50Ah/12V | 80AH/12V |
| Solar Panel | 60W/18V | 80W/18V | 100W/18V | 150W/18V | 200W/18V |
| Battery Structure | Built-in Battery | External Battery | |||
| Lamp Size | 500*205*80mm | 620*320*100mm | |||
| CCT | 6000K | ||||
| Lumens(LM) | 180lm/W | ||||
| Beam Angle | 70°*150° | ||||
| Working Time | 12hrs 365days | ||||
| Housing | Aluminum | ||||
| Controller | Patent Pro-Double MPPT Solar Charge Controller | ||||

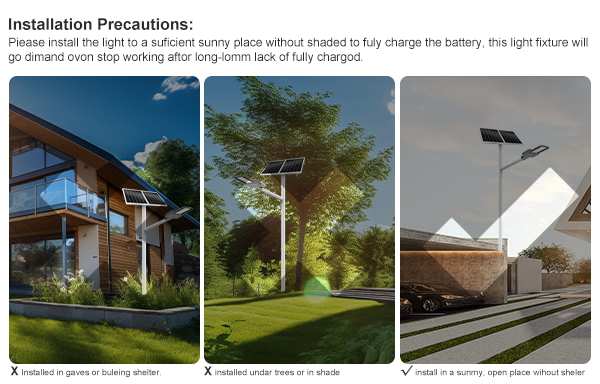

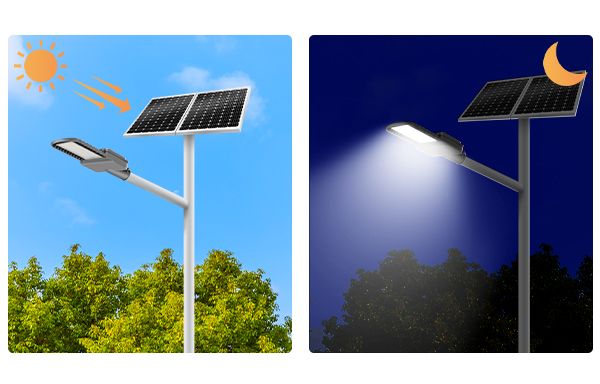

Street Solar Light Installation Notes
Please install the BS-BDX series street solar lights in a sufficient sunny place for charging, this light fixture will go on demand, it will stop working after a scarcity of charging time. Placing the street solar light in a sunny, open location maintains the system's longevity. Consistent exposure to sunlight prevents the battery from experiencing prolonged periods of discharge, which can extend its lifespan and overall durability.
PLEASE DO NOTICE: Avoid Incorrect Installation
Make The Best Use of The BS-BDX Series Street Solar Light
1.DO NOT install in eaves or building shelter
2.DO NOT install under trees or in shade
3. Install in a sunny, open place without shelter

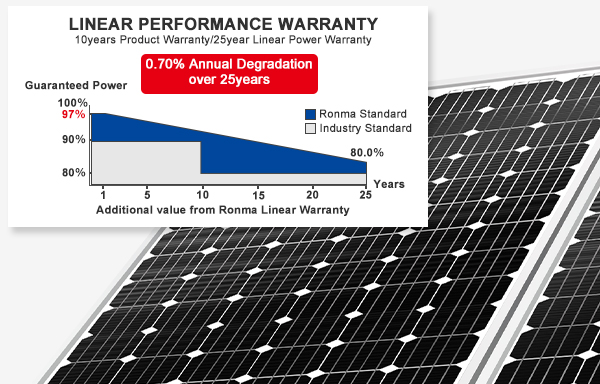

High-Efficient Solar Panel
BS-BDX series solar street light pole instructs the grade-a high-quality solar panel, with high-efficiency charging rate > 23%, maximizing electricity production. BOSUN® dedicated to developing long life-span street solar lights to translate to reduced installation and maintenance costs over time. Its key advantage lies in its superior efficiency, which allows it to seize and convert more sunlight into electricity compared to ordinary solar panels.

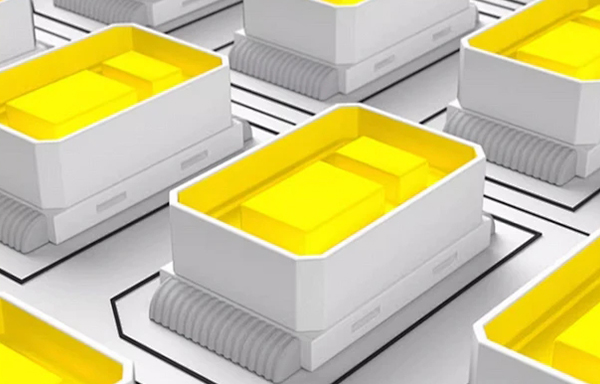

Philips LED Chips
BOSUN® Lighting is the best street solar lights brand, utilizing international standard LED chips, assurance of product quality. Philips LED Chips are highly energy-efficient, converting a major portion of electrical energy into visible light, ensuring enhanced visibility, comfort, and visual appeal in illuminated spaces, making the BS-BDX series street solar lights suitable for different lighting applications. This efficiency helps reduce energy consumption and lowers electricity costs, thus realizing environmental protection.

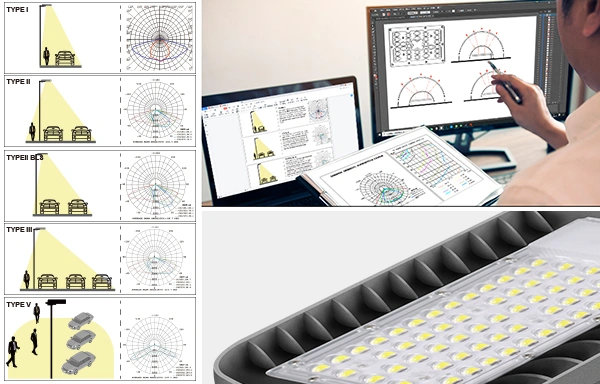

PC Optical Lens For Uniform Lighting
The advantages of PC optical lenses lie in their combination of durability, lightweight construction, high optical clarity, and uniform high-brightness light source. UV resistance, and versatility, making them a preferred choice for a wide range of lighting applications. PC lenses are highly impact-resistant, making them suitable for use in rugged environments. This durability ensures a longer lifespan than glass lenses, reducing maintenance and replacement costs, which created the BOSUN® global-famous solar street light pole.

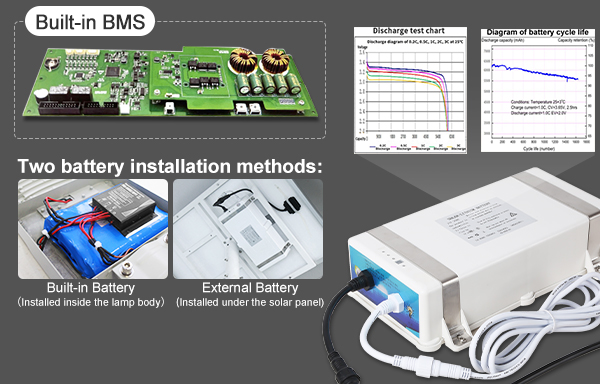

LiFePO4 Lithium Battery For Street Solar Light
LiFePo4 Lithium Solar Lamp Battery
Built-in BMS (Battery Management System)
Overcurrent protection
Temperature protection
Charge current limit
Error indication
Short-circuit protection
Automatic equalization

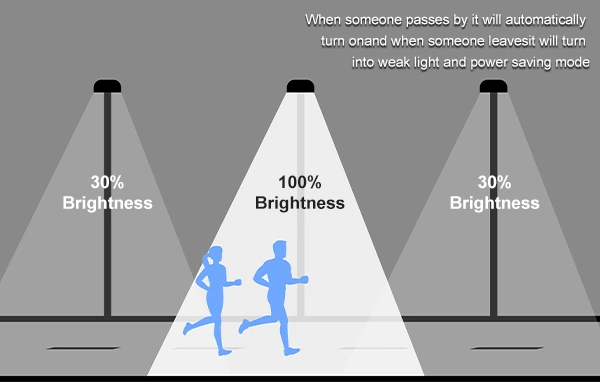

Smart IR Motion Sensor
Infrared Motion Sensor is a device that detects motion by measuring changes in infrared radiation levels in its field of view. This solar street light pole with motion sensor works in a dimming mood, with a BOSUN® smart energy-saving sensing system, 100% brightness illumination for people passing by within 8-10 meters, and 30% brightness without movement nearby.
Pro-Double MPPT Solar Controller Evolutionary
BOSUN® flagship product and patented technology, 45%-50% higher efficiency than ordinary PWM solar charge controllers, significantly enhances energy conversion rates. From MPPT technology to patented Double-MPPT, and patented Pro-Double MPPT (IoT) technology, BOSUN® always the leader in the street solar light industry.

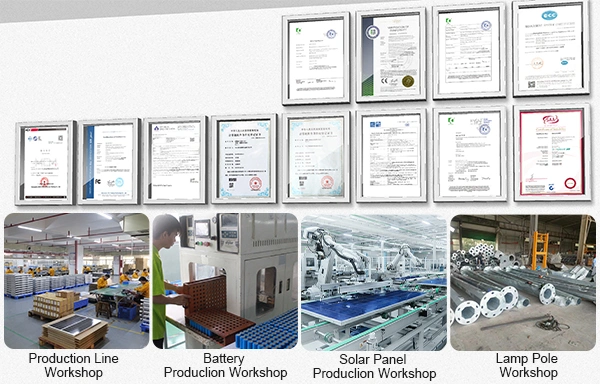

Brief Info
BOSUN® Lighting is a High-Tech manufacturer with a strong and professional R&D team, and service capacities in the eco-friendly lighting and smart street lighting industry. BOSUN® as the leading brand of long life-span street solar light manufacturers and solar lighting solution experts, keeps researching and developing cutting-edge street solar lights for mankind and consciously taking responsibility for environmental protection. For more info about BOSUN® Light please click About Us.
Free DIALux Design Lighting Solutions
Top lighting brand in China, specializes in solar-powered street lights and professional lighting design solutions worldwide. Serving customers worldwide with OEM, ODM, and customized solutions. Experience unparalleled precision in lighting design with our Free DIALux Design Lighting Solutions. Your ubiquitous OEM & ODM solar street light expert. Help you win government and commercial projects more easily. Get your Free DIALux design solution.

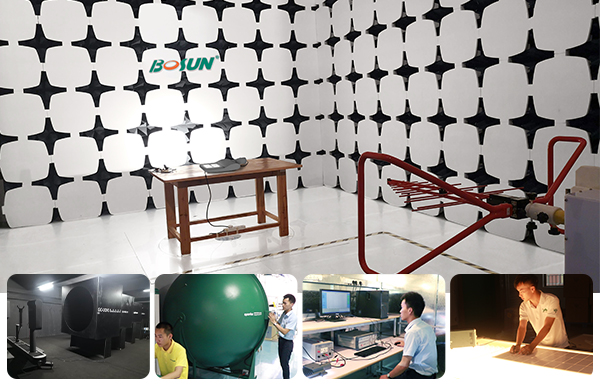

Test System To Achieve High Quality
Backed by years of industry research. With a commitment to innovation and high-quality products, such as IES photometric distribution test system, life testing system of LED, EMC testing system, Integrating sphere, lightning surge generator, LED power driver tester, drop and vibration test stand for quality control and assurance, provide the most accurate technical parameters for your engineering projects. BS-BDX series street solar light can work under all extreme climate conditions. Adhering to a professional and reliable attitude for the best street solar lights is the purpose of BOSUN®Lighting. Professional Laboratory.

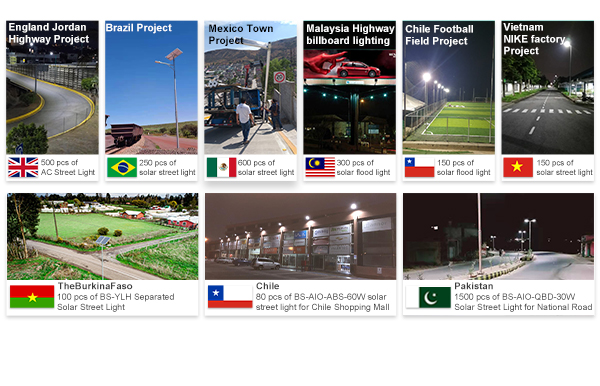

Successful Project References
Transform your outdoor spaces with our integrated solar street lights, and solid support from a professional and reliable team. 20 years of experience and gained lots of positive reviews in diverse projects worldwide. Project references indicate instances where solar street light pole have been successfully implemented in various real-world scenarios. These references serve as concrete examples of the product's reliability, effectiveness, and suitability for different applications. Project Showcase.
