integrated solar street light
Outdoor Integrated Long Life-span LED Solar Street Lights Manufacturer - BS-QBD-SE Series
BS-QBD-SE Series
​​Model: BS-QBD SE02 BS-QBD SE03P BS-AIO-CL-1000

Solar Panel: 40W/10V 50W/10V 60W/10V 80W/10V 105W/18V 120W/36V

Battery: 30Ah/6.4V 36Ah/6.4V 42Ah/6.4V 60Ah/6.4V 48Ah/12V 30Ah/25.6V

LED Chips: 90PCS 120PCS 150PCS

CCT: 6000K

Lumens(LM): 180lm/W

Beam Angle: 70°*150°

Working Time: 12hrs 365days

Housing: Die-casting aluminum

Controller: Patent Pro-Double MPPT Solar Charge Controller

Lamp Size(mm): 735*368*43 900*368*43 1080*368*43 1230*368*45 1230*526*45 1390*550*45
Quantity

Outdoor Solar Street Lights Features

Integrated design for easy and convenient transportation and installation. Inserted with mono crystalline silicon solar panel, patented technology solar charge controller, LiFePO4 lithium battery, and IR motion sensor. Using the grade-a aluminum housing, endurable and long life-span usage time, high anti-corrosion, IP65 waterproof.
It's the solar street light shop near me, BS-QBD-SE series outdoor solar street lights are ideal for engineering applications, BOSUN® Lighting provides professional and customized lighting design solutions if needed.

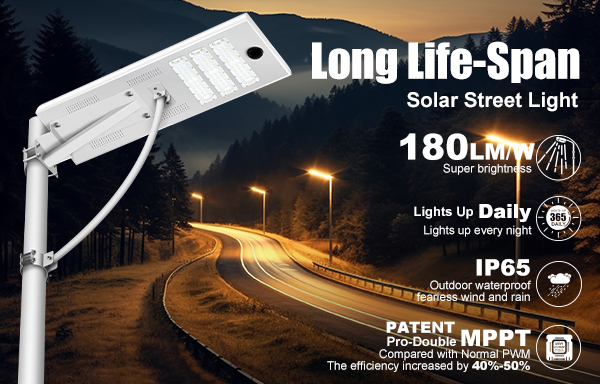

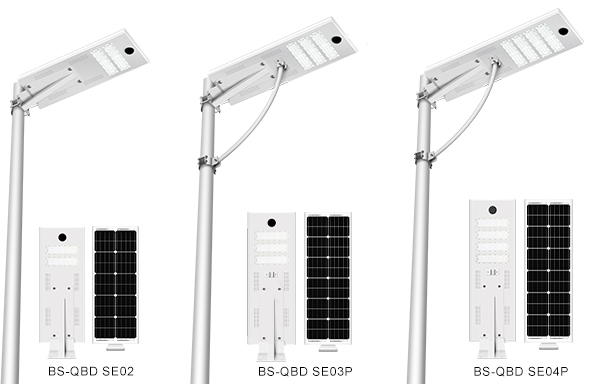

BOSUN outdoor solar street lights
                                                                          BOSUN outdoor solar street lights​​​​

ModelBS-QBD-SE-02PSBS-QBD-SE-03PSBS-QBD-SE-04PSBS-QBD-SE-05PS-A
Power40W60W80W100W
Solar Panel(Mono)40W/10V60W/10V80W/10V105W/18V
LifePo4 Battery30Ah/6.4V84AH/3.2V100AH/3.2V36AH/12.8V
Module2 Modules3 Modules4 Modules5 Modules
ChipPhilips
Chip Lumens>170lm/w
SensorYes/No
ControllerPro-Double Patent MPPT
CRI>70
VoltageDC
CCT3000K to 6000K
MaterialAluminum
IP RatingIP65
Guaranty3 years
Size(mm)735*368*43mm1060*365*45mm1230*365*45mm1230*525*45mm1330*525*45mm
Weight (KG)13kg15172225
Packing Size
Bracket1080*400*1551130*400*1551300*400*1551320*565*1851420*565*185
Sleeve1060*400*1451095*400*1451265*400*1451285*565*1451285*565*145

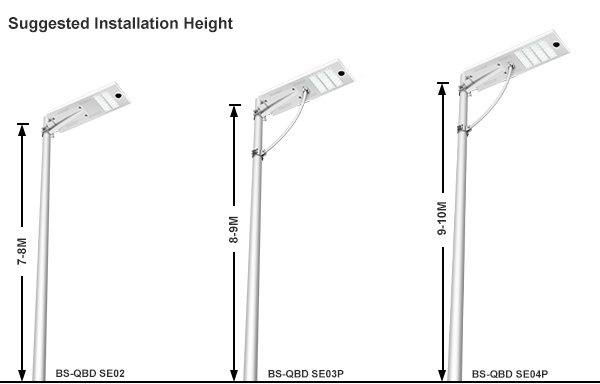

Suggested Installation Height

Please install the BS-QBD-SE outdoor solar street lights in a sufficiently sunny place for charging, this outdoor solar street lights features three height optional, different models, with corresponding heights. Placing the light in a sunny, open area maintains the system's longevity.
BOSUN outdoor solar street lights
 PLEASE DO NOTICE:  Avoid Incorrect Installation

Make The Best Use of The BS-QBD-SE Series

1.DO NOT install in eaves or building shelter
2.DO NOT install under trees or in shade
3. Install in a sunny, open place without shelter

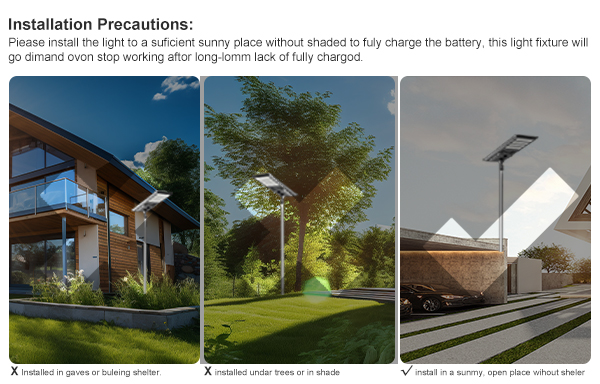

BOSUN outdoor solar street lights Lighting Installation Suggestion

Efficient Solar Panel For Outdoor Solar Street Lights

It is equipped with the grade-a high-quality solar panel, with a high-efficiency charging rate > 23%, maximizing electricity absorption and generation. Its major advantage lies in its superior efficiency, which allows it to capture and convert a higher percentage of sunlight into electricity compared to generic solar panels.

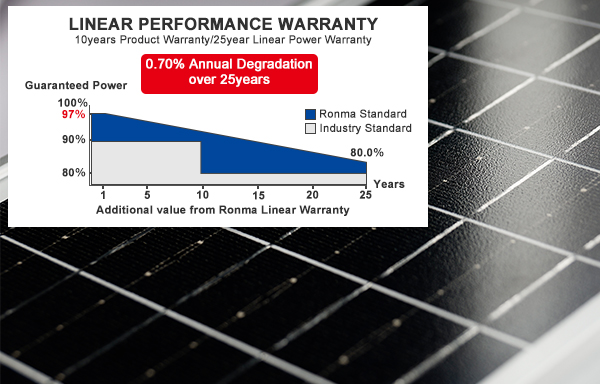

BOSUNoutdoor solar street lights Lighting Solar Panel


International Standard LED Chips

Utilizing the international standard LED chips, it is the assurance of product quality. Philips LED Chips are highly energy-efficient, converting a significant portion of electrical energy into visible light, ensuring enhanced visibility, comfort, and visual appeal in illuminated spaces, making the BS-QBD-SE series 105w outdoor solar street lights suitable for various lighting applications. This efficiency helps reduce energy consumption and lowers electricity costs, thus realizing environmental protection.

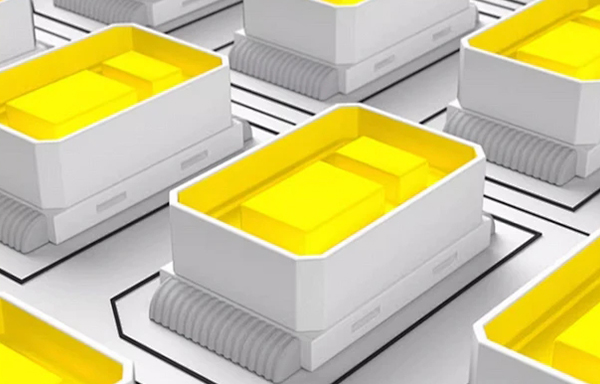

BOSUN Lighting outdoor solar street lights Philips LED Chips

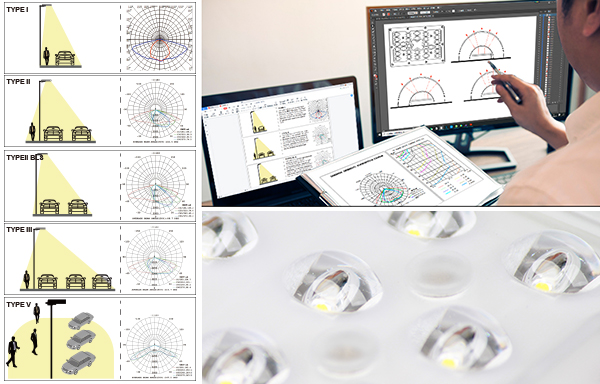

BOSUN PC Optical Lens

The advantages of PC optical lenses lie in their combination of durability, lightweight construction, optical clarity, and high-brightness uniform lighting source. PC lenses are highly impact-resistant, making them suitable for extreme environments or applications. This durability ensures a longer lifespan compared to normal lenses, reducing maintenance and replacement costs, which created the BOSUN® global-famous commercial solar-powered street lamp.

BOSUN Lighting outdoor solar street lights PC Optical Lens

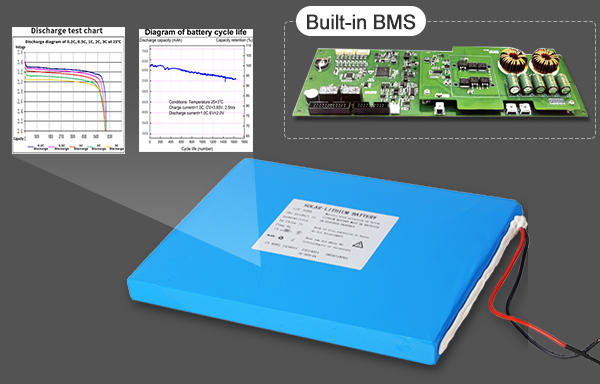

LiFePO4 Lithium Street Light Solar Cell

This street light solar cell is equipped with a built-in battery management system, it’s the best battery for outdoor solar street lights, and it is solidly supported. It's the combination of high energy density, longevity, safety, and environmental benefits that make this street light solar cell a preferred choice for a wide range of applications. LiFePO4 solar light battery can operate effectively across a wide range of temperatures, from extreme cold to high heat, without compromising performance or longevity. This makes them suitable for use in various environments and climates.

LiFePo4 Lithium Solar Lamp Battery

Brand new A+32700 battery
Battery cell capacity 6000Mah


Built-in BMS (Battery Management System)


Overcurrent protection
Temperature protection
Charge current limit
Error indication
Short-circuit protection
Automatic equalization
BOSUN street light solar cell

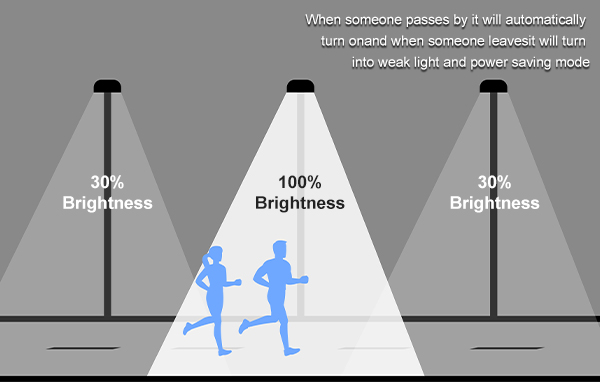

Motion Sensor

Infrared Motion Sensor is a device that detects motion around by measuring changes in infrared radiation levels in its field of view. This outdoor solar street lights with IR motion sensor works in a dimming mood, 100% brightness illumination for people passing by within 8-10 meters, and 30% brightness without movement around.

BOSUN outdoor solar street lights IR Motion Sensor

Patent Pro-Double MPPT Solar Controller

BOSUN® flagship product and patented technology, 45%-50% higher efficiency than normal solar charge controller, significantly enhances energy conversion rates. This means more power harvested from solar panels, resulting in increased energy generation and cost savings. From MPPT technology to patented Double-MPPT, and patented Pro-Double MPPT (IoT) technology, BOSUN® always the leader in the integrated solar street lamp industry.

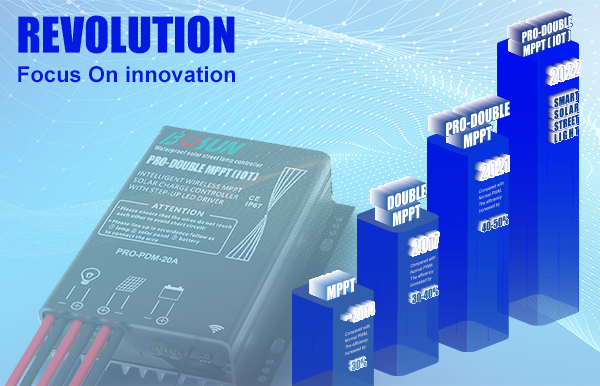

BOSUN outdoor solar street lights Patent Pro-Double MPPT Solar Controller

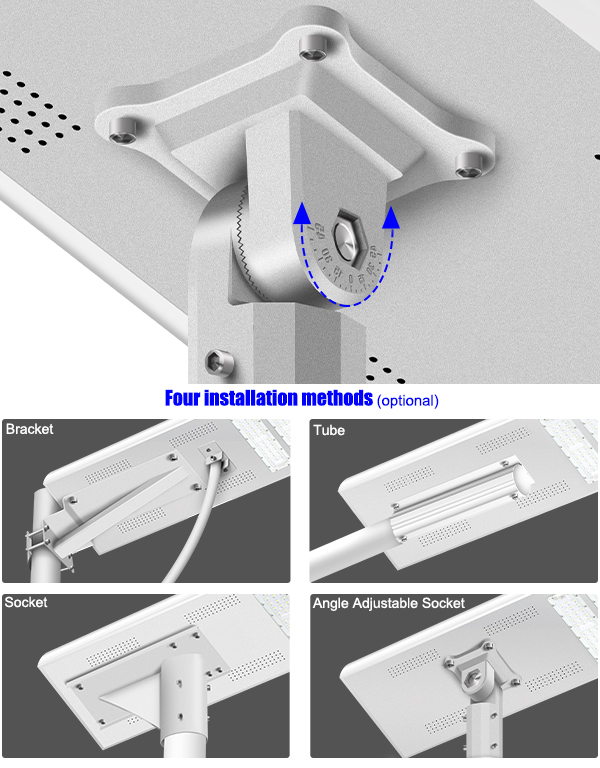

Rotatable Light Head Angle

The rotatable adjustment light head angle outdoor solar street lights are designed with a unique feature that allows customers to adjust the angle of the light fixture to optimize sunlight capture and illumination direction throughout the day. This adaptability ensures maximum sunlight absorption for higher efficient electricity energy conversion, enhances illumination area, and enables customization according to varying project requirements.

Flexible Light Head:This flexibility is particularly beneficial for illuminating specific areas or adjusting to changing lighting requirements.



Enhanced Conversion Efficiency: Compare to regular LED integrated solar street lamp. They can harness more solar energy and provide better illumination coverage, making them a more sustainable and cost-effective lighting solution.



Customized Lighting Solutions: Adjustable light heads offer tailored lighting solutions for various project applications, allowing for precise illumination of specific areas or objects.



Adaptability:It can adapt to seasonal changes and different environments in sunlight angles or shifting lighting requirements.



Cost-Effective: By harnessing solar energy efficiently and reducing dependency on grid electricity, rotatable integrated solar street lamps can lead to significant cost savings in the long run, both in terms of energy bills and maintenance expenses.

BOSUN outdoor solar street lights Rotatable Adjustment Angle



Brief Overview

BOSUN® Lighting is a national High-Tech manufacturer with a strong R&D team, and service capacities in the solar lighting and smart lighting industry, that offers professional production support. BOSUN® as the leading brand of long life-span outdoor solar street lights, keeps researching and developing cutting-edge outdoor solar street lights for mankind and consciously taking responsibility for environmental protection. For more info about BOSUN® Light please click About Us.

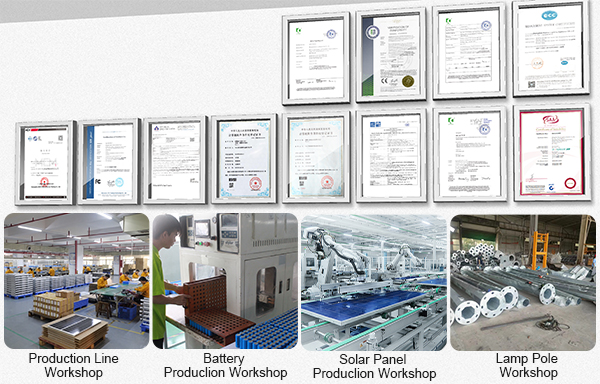

BOSUN Lighting outdoor solar street lights Brief Info




Free DIALux Design

Top lighting brand in China, specializes in integrated solar street lamp and professional lighting design solutions worldwide. Serving customers worldwide with OEM, ODM, and customized solutions. Experience unparalleled flexibility and precision in lighting design with our Free DIALux Design Lighting Solutions. Harnessing advanced technology and intuitive features, DIALux empowers users to create tailored lighting layouts with utmost accuracy. Your ubiquitous OEM & ODM outdoor solar street light expert. Help you win government and commercial projects more easily. Get your Free DIALux design solution.

BOSUN Free DIALux Design Lighting Solutions




High-Quality Guaranteed

Through strict test systems like IES photometric distribution test system, life testing system of LED, EMC testing system, Integrating sphere, lightning surge generator, LED power driver tester, drop and vibration test stand for quality control and assurance, provide the most accurate technical parameters for your engineering projects. BS-QBD-SE series series can work under all extreme climate conditions. Adhering to a professional and reliable attitude for the best integrated solar street lamp is the purpose of BOSUN®Lighting. Professional Laboratory.

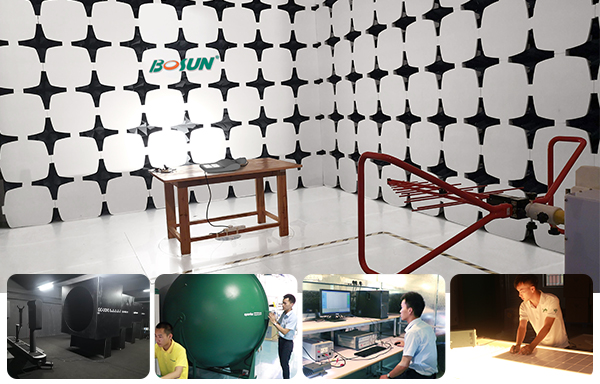

BOSUN outdoor solar street lights Test System QC & QA


Project References

Transform your outdoor spaces with our integrated solar street lamp, and solid support from a professional and reliable team. 20 years of experience and gained lots of positive reviews in diverse projects worldwide. Project references indicate instances where commercial outdoor solar street lights have been successfully implemented in various real-world scenarios. These references serve as concrete examples of the product's reliability, effectiveness, and suitability for different applications. Project Showcase.

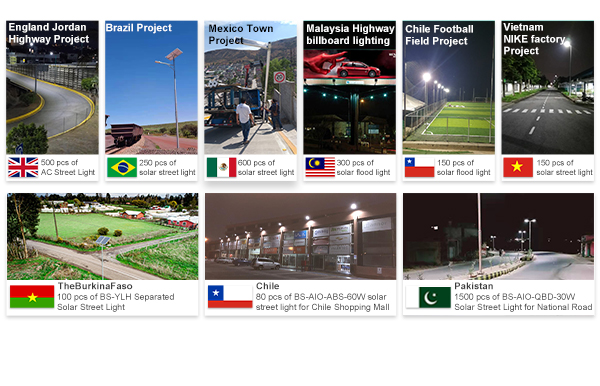

BOSUN outdoor solar street lights Project References
