Power: 150W 200W 300W
Battery: 12Ah/3.2V 24Ah/3.2V 30Ah/3.2V
Solar Panel: 25W/6V 30W/6V 35W/6V
Solar Panel Size: 350*350*17mm 530*350*17mm 600*350*17mm
LED QTY: 2835(209PCS) 2835(496PCS) 2835(852PCS)
Lamp Size: 255*210*53mm 255*210*53mm 255*210*53mm
CCT: 6000K
Lumens(LM): 180lm/W
Beam Angle: 70°*150°
Working Time: 12hrs 365days
Housing: Die-Casting aluminum
Controller: Patent Pro-Double MPPT Solar Charge Controller

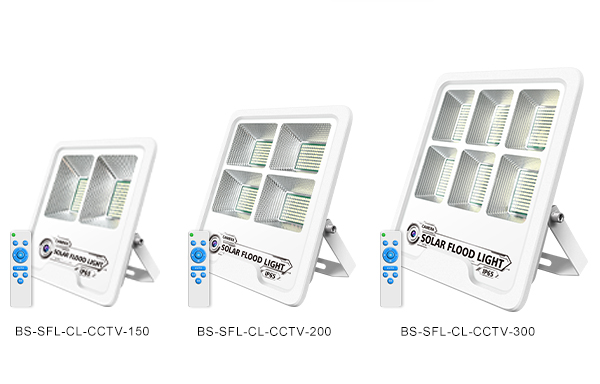

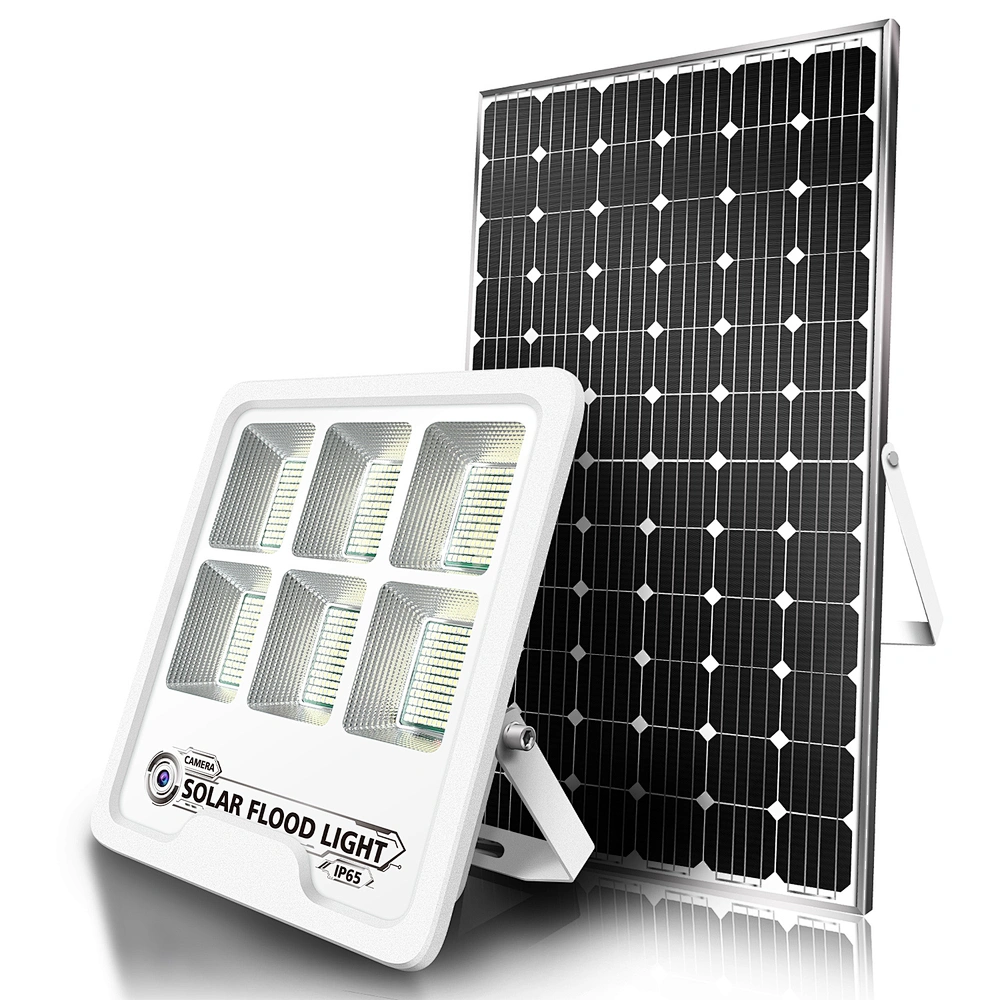

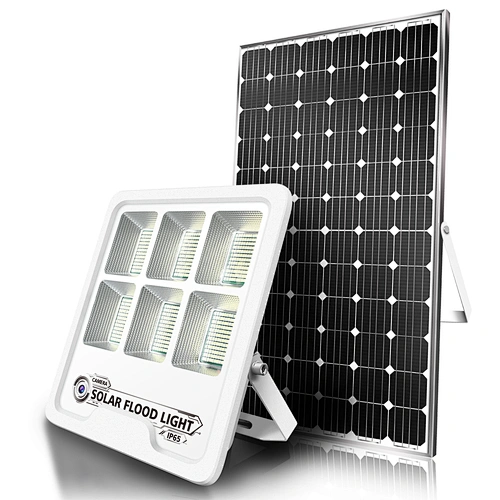

Solar Power Motion Sensor Flood Lights Details & Features
| Model | BS-SFL-CCTV-150 | BS-SFL-CCTV-200 | BS-SFL-CCTV-300 |
| Power | 150W | 200W | 300W |
| Battery | 12Ah/3.2V | 24Ah/3.2V | 30Ah/3.2V |
| Solar Panel | 25W/6V | 30W/6V | 35W/6V |
| Solar Panel Size | 350*350*17mm | 530*350*17mm | 600*350*17mm |
| LED QTY | 2835(209PCS) | 2835(496PCS) | 2835(852PCS) |
| Lamp Size | 255*210*53mm | 255*210*53mm | 255*210*53mm |
| CCT | 6000K | ||
| Lumens(LM) | 180lm/W | ||
| Beam Angle | 70°*150° | ||
| Working Time | 12hrs 365days | ||
| Housing | Aluminum | ||
| Controller | Patent Pro-Double MPPT Solar Charge Controller | ||

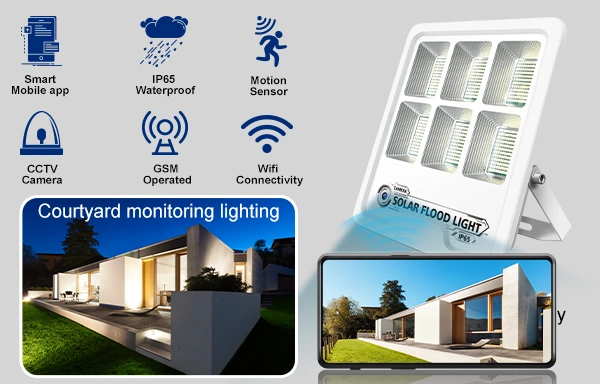

Multiple Functions
This BS-SFL-CL solar power LED flood lights features multiple functions such as the CCTV connection to the smart mobile app via WiFi for monitoring the live screen where you installed it, which is more secure and convenient, with IP65 waterproof for rainproof and rust-proof, with no fear of stormy weather. Instructs with an infrared motion sensor is a device that detects motion by measuring changes in infrared radiation levels in its field of view. Please install the solar power flood light outdoor with CCTV in a sufficiently sunny place for charging.
Monitor Live Screen
Stay connected and vigilant with the solar power LED flood lights, offering effortless CCTV connectivity to your mobile device via WiFi. Monitor live footage in real-time, ensuring security and peace of mind. Upgrade your outdoor security and lighting solutions with the versatility and convenience of solar power LED flood lights, bringing together advanced surveillance technology and reliable illumination in one robust package.
Enhanced Security: Enjoy peace of mind knowing you can monitor your property remotely, enhancing security measures and deterring potential intruders.
Convenience: Access live footage directly from your smart mobile device, allowing you to keep an eye on your property even when you're away. Less worry and more secure.
Cost-Effective: By harnessing solar energy, this solar power LED flood lights operates efficiently and reduces electricity costs, making it a sustainable and economical choice for your outdoor lighting and security needs.
| Product name | BS-M4 | |
| Kernel | Master chip platform | Linux operating system with high-performance DSP processor AK3918EV200 |
| Image sensor | Geke Micro 1/4 inch CMoS (GC1054) | |
| External interface | Interface | Micro SD self-elastic interface |
| Extension interface | Infrared light board interface, power supply, speaker, microphone, micro USB power interface | |
| Reset switch | Support hard copy function | |
| Video | Video presentation method | Horizontal screen 16:9 |
| Compression mode | H.264 main profile5.0 | |
| Frame frequency | Main code stream (HD): 1080P@15fps Sub code stream (standard definition): 480P@15fps | |
| Resolving power | 1080P 480P(640*480) | |
| Illumination | ON).0Lux with IR | |
| Video bitrate | Main code stream (HD): 500kbps Sub code stream (SD): 300kbps | |
| Camera lens | 3.6MM @ F2.5, 90 ° diagonally | |
| Basic functions | Mirror/Flip | Support |
| Noise reduction | 3D noise reduction | |
| Voice intercom | Support two-way voice intercom and echo cancellation | |
| Audio input | 1-way MIC | |
| Audio output | 1-Speaker(1W/2W/4W) | |
| Anti flicker | Three types of outdoor/50 Hz/60 Hz are supported | |
| Add Method | Support QR code scanning, quick configuration. AP | |
| Mobile detection | Support | |
| Restore Default | Support | |
| Local storage | Support TF card to store continuous video/event video, and support up to 128G TF card | |
| Value added services | Graffiti cloud storage | Support continuous recording/event recording |
| Amazon Alexa | Google assistant support (optional) | |
| Environment | Working temperature | -20°C~80°C |
| Operating humidity | 10%~95% non-condensing | |
| Other | Power specifications | DC 5V 1A |
| PCB size | a main board(L44.5*W39*H1.2)mm | |

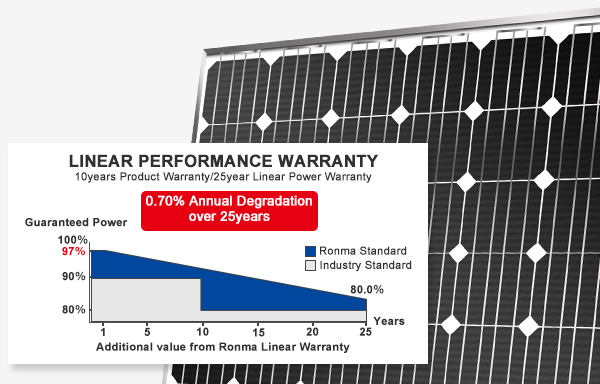

High-End Efficient Solar Panel
BS-SFL-CL-CCTV series solar power motion sensor flood lights instruct the high-end solar panel, with high-efficiency charging rate > 23%, maximizing electricity generation. BOSUN® dedicated to developing long life-span solar powered motion sensor flood lights to reduce installation and maintenance costs over time. Its key advantage lies in its superior efficiency, which allows it to capture and convert a higher percentage of sunlight into electricity compared to normal solar panels.

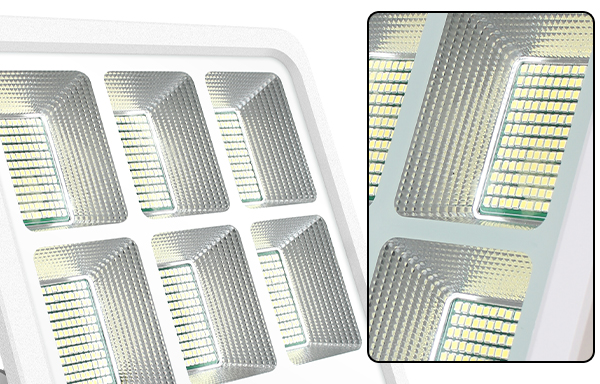

Reliable Philips LED Chips
BOSUN® Lighting is the best outdoor lighting brand, utilizing international standard LED chips, assurance of product quality. Philips LED Chips are highly energy-efficient, converting a significant portion of electrical energy into visible light, ensuring enhanced visibility, comfort, and visual appeal in illuminated spaces, making the BS-SFL-CL-CCTV series solar power motion sensor flood lights suitable for various lighting applications. This efficiency helps reduce energy consumption and electricity bills, thus realizing environmental protection.

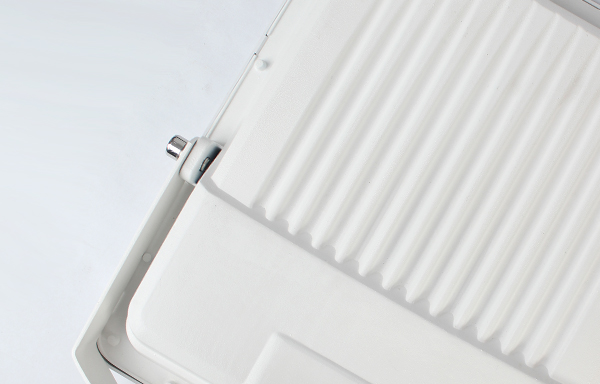

Die-Casting Aluminum
Great thermal Efficiency: This thermal management capability helps to prolong the lifespan of the lights and ensures consistent performance even during extended periods of operation.
Solid: Unlike the regular ABS material, BOSUN® utilizes grade-a aluminum for products that tend to achieve higher quality, and Anti-corrosion and anti-oxidation, honoring the commitment of a long life-span usage.

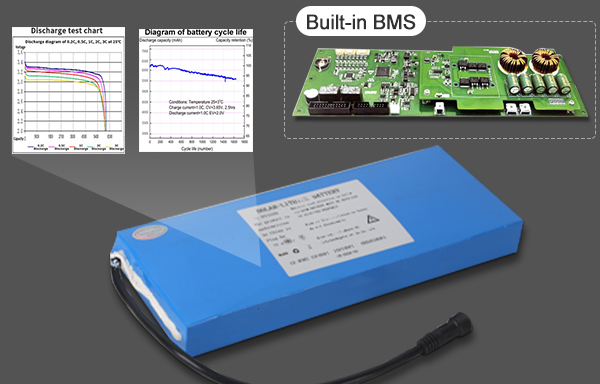

LiFePO4 Lithium Battery
LiFePo4 Lithium
Built-in BMS (Battery Management System)
Overcurrent protection
Temperature protection
Charge current limit
Error indication
Short-circuit protection
Automatic equalization

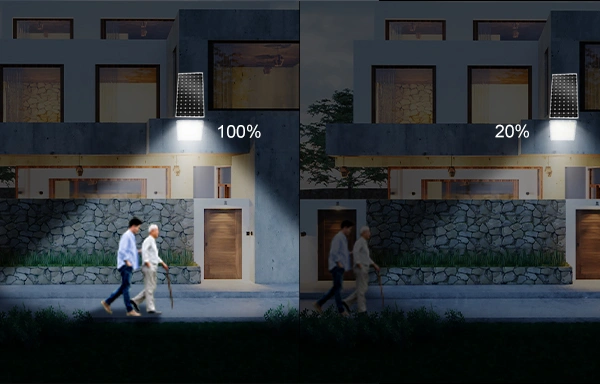

Solar Power Motion Sensor Flood Lights
Infrared Motion Sensor is a device that detects motion by measuring changes in infrared radiation levels in its field of view. This solar power LED flood lights with a motion sensor works in a dimming mood,100% brightness illumination for people passing by within 8-10 meters, and 20% brightness without people around.

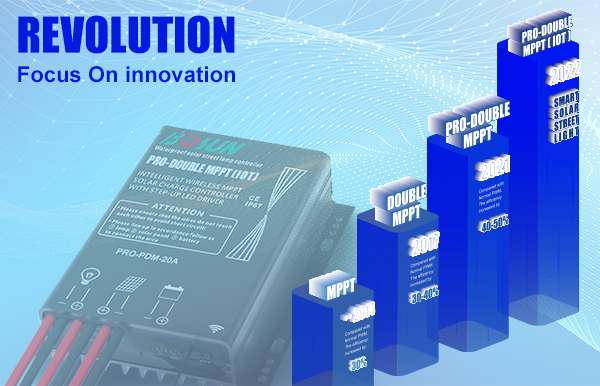

Patent Pro-Double MPPT Solar Controller
BOSUN®'s flagship product and patented technology, which has a 45%-50% higher efficiency than a generic PWM solar controller, significantly enhances energy conversion rates. From MPPT technology to patented Double-MPPT, and patented Pro-Double MPPT (IoT) technology, BOSUN® always the leader in the all-in-one solar street light industry.

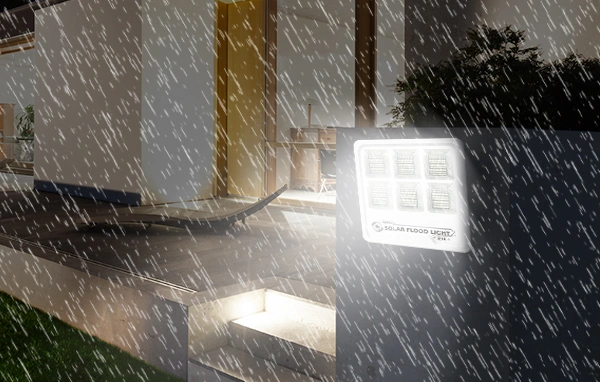

Solar Power Flood Light Outdoor With IP65 Waterproof
Water resistance: Guards against water jets from any direction, safeguarding devices from rain or splashes, ideal for outdoor use.
Durability: Withstands exposure to rain, snow, and other weather elements, extending the lifespan of devices.
All-weather protection: Enables reliable operation in both wet and dry conditions, reducing downtime and maintenance costs.
Cost Savings: Solar power motion sensor flood lights can lead to significant cost savings in the long run, both in terms of energy bills and maintenance expenses.

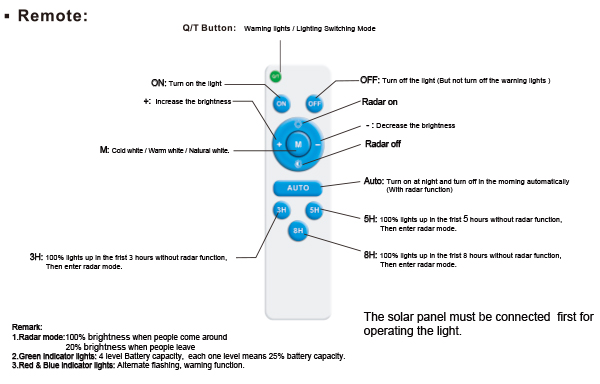

Remote Operation
Remote control operation to adjust settings, switch between lighting modes, and manage CCTV functions conveniently from a distance with the included remote control, offering flexibility and ease of use. triple color light is optional, feasible to set 100% brightness illumination for people passing by within 8-10 meters, and 20% brightness without movement.
Brief Info Of BOSUN Lighting
BOSUN® Lighting is a national high-tech company with a strong R&D team. BOSUN® as the leading brand of long life-span solar power LED flood lights manufacturers and solar lighting solution experts, keeps researching and developing cutting-edge outdoor solar flood light with CCTV for mankind and consciously taking responsibility for environmental protection. For more info about BOSUN® Light please click About Us.
Free DIALux Design Solutions
Specializing in solar power motion sensor flood lights and professional lighting design solutions worldwide. Serving customers worldwide with OEM, ODM, and customized solutions. Your ubiquitous OEM & ODM solar street light expert. Help you win government and commercial projects more easily. Get your Free DIALux design solution.

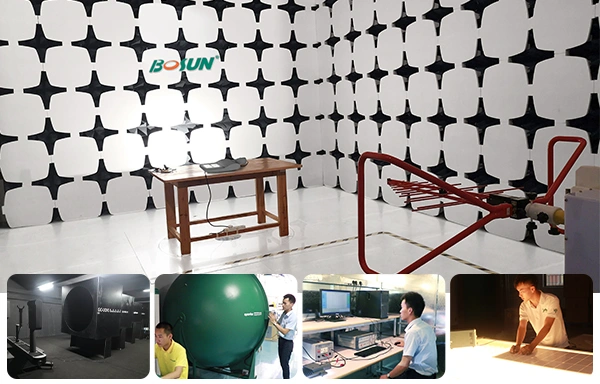

Test System
With a commitment to produce the best products, all must pass the such as IES photometric distribution test system, life testing system of LED, EMC testing system, Integrating sphere, lightning surge generator, LED power driver tester, drop and vibration test stand for quality control and assurance, provide the most accurate technical parameters for your engineering projects. This solar power LED flood lights can work under all extreme climate conditions. Adhering to a professional and reliable attitude for best solar street lights is the purpose of BOSUN®Lighting. Professional Laboratory.

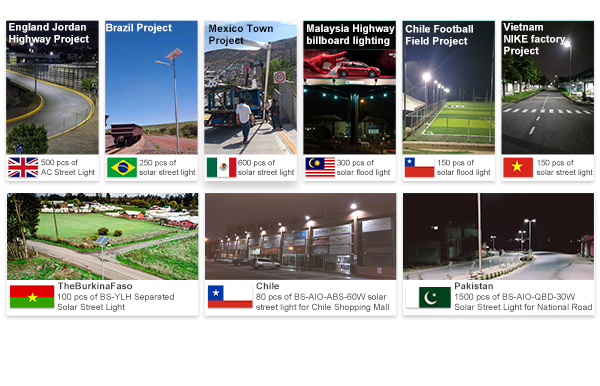

Project References
20 years of experience and gained lots of positive reviews in diverse projects worldwide. Project references indicate instances where solar power LED flood lights have been successfully implemented in different scenarios. These references serve as concrete examples of the product's reliability, effectiveness, and suitability for different applications. Project Showcase.
