bosunlighting long life span all in one solar street light

Bosun lighitng Long Life-Span All-in-One Solar Street Light - BS-AIO-JH Series

Model NO. BS-AIO-JH Series

Model：BS-AIO-JH30 BS-AIO-JH40 BS-AIO-JH50

Solar Panel：30AH/3.2V 45AH/3.2V 50AH/3.2V

Dimension(mm)：618*300*160 798*300*164 892*320*164

Lumen：6000lm 6000lm 6000lm

Lamp beads：5054-50pcs*2 5054-50pcs*3 5054-50pcs*4

Back Cover Size：160*140*45mm 160*230*50mm 160*230*50mm

CCT(K)：3000K-6000K

Quantity

6000LM High-Performance Integrated Lighting

Say goodbye to complex wiring and recurring electricity costs. The BS-AIO-JHB Series All-in-One Solar Street Light is a revolutionary integrated system, combining high-efficiency A-grade Monocrystalline Solar Panels, a Patented Pro-Double MPPT Controller, and an Industrial-GradeLiFePO4 Battery

Whether designated for highways,urban streets, or industrial parks, our solution offers superior brightness, ultra-long autonomy, and a minimalist installation experience.

Bosun Lighting All In One Solar Street Light Core Performance Advantages

Our lights are designed with patented technology and top-tier components to ensure unmatched durability and performance.

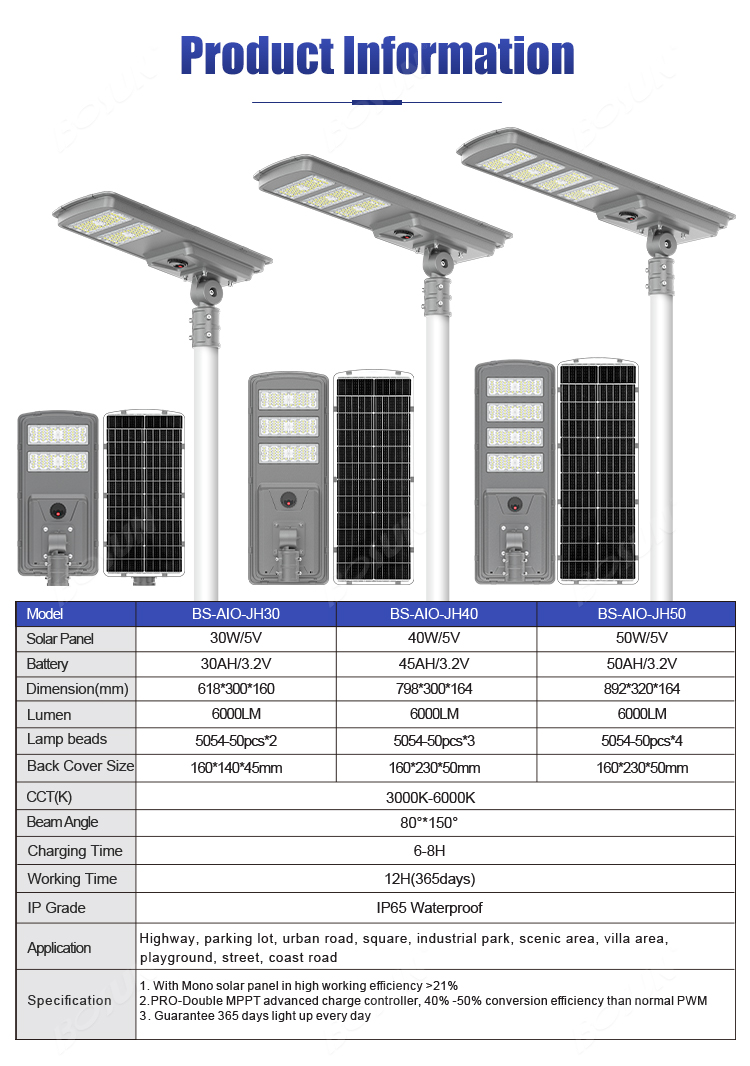

Model	Solar Panel Power (W)	Battery Capacity (Ah/V)	Nominal Lumen (LM)	*Dimensions (mm) (LWH)*	LED Configuration	Recommended Application
BS-AIO-JHB30	30W / 5V	30AH / 3.2V	6000LM	618 x 300 x 160	50pcs x 2	Parking Lots, Sidewalks, Small Roads
BS-AIO-JHB40	40W / 5V	45AH / 3.2V	6000LM	798 x 300 x 164	50pcs x 3	Urban Streets, Parks, Residential Areas
BS-AIO-JHB50	50W / 5V	50AH / 3.2V	6000LM	892 x 320 x 164	50pcs x 4	Highways, Main Roads, Industrial Zones

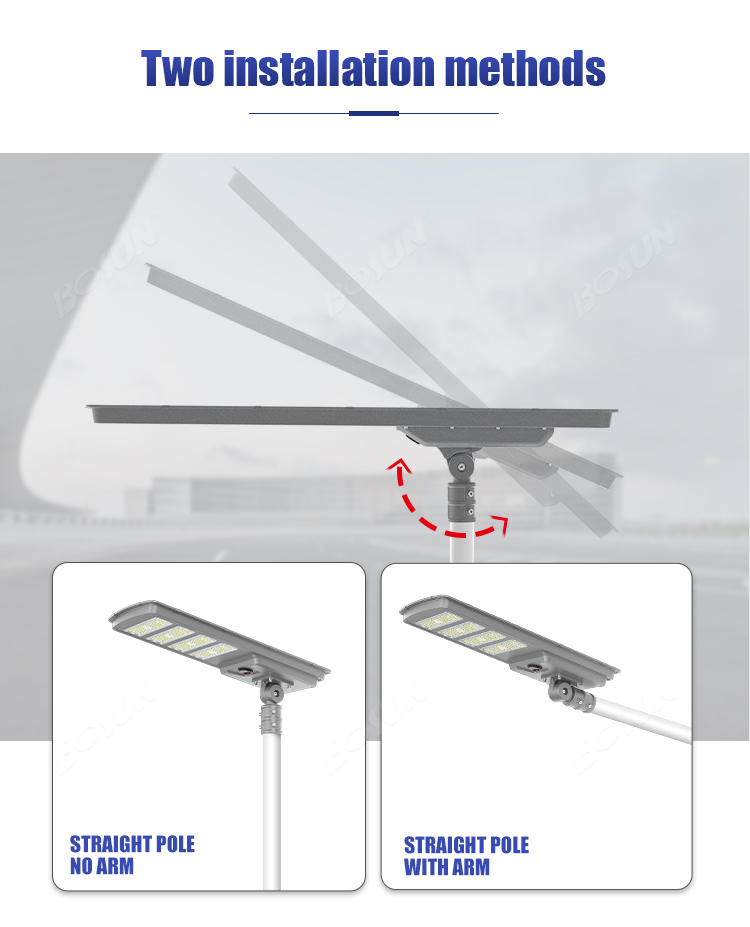

Flexible & Simple Installation

The integrated design requires minimal tools and time. All models feature an Adjustable Die-Casting Aluminum Adapter for perfect solar angle positioning, supporting two main installation methods:

Straight Pole (No Arm)
Straight Pole (With Arm)

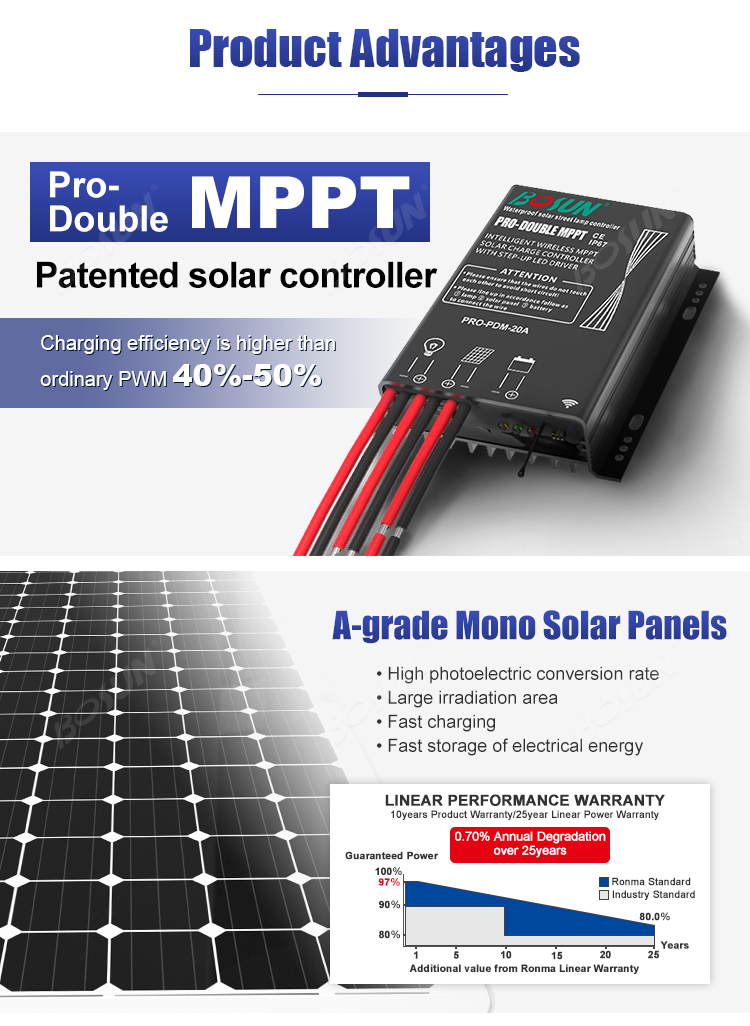

PatentedPro-Double MPPT Technology: Up to 50% Higher Charging Efficiency

The charging controller is the brain of any solar light. Unlike standard, low-cost PWM controllers, our system features a Patented Pro-Double MPPT (Maximum Power Point Tracking) Controller.

Expertise Highlight: This advanced technology boosts charging efficiency by a substantial 40% to 50% compared to traditional PWM systems.
Real-World Benefit: Your lights charge faster and more effectively, even during shorter daylight hours or extended cloudy periods, guaranteeing the battery receives the energy it needs to support 12 hours of stable nighttime operation.

LiFePO4 Battery System: Built for Longevity

We utilize brand-new, high-quality A+ 32700 LiFePO4 (Lithium Iron Phosphate) cells—the safest and most durable choice for outdoor solar applications.

Capacity Range: Offers substantial capacity configurations from 30AH up to 50AH (3.2V) across the JHB30 to JHB50 models. This capacity is engineered to deliver reliable power and extended autonomy (multiple days) during poor weather conditions.
Safety & Trust: An integrated BMS (Battery Management System) provides multi-level protection against overcurrent, short-circuits, and temperature fluctuations, ensuring a long operational life of over 2000 cycles.

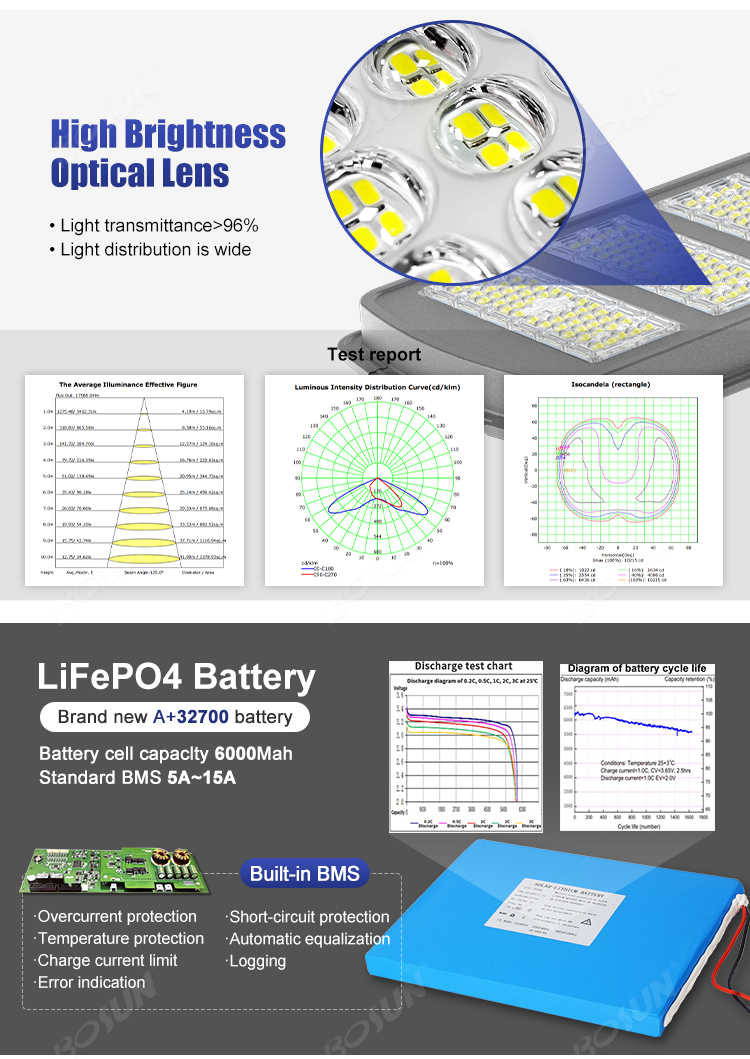

Superior Optical Output: High Lumens & Wide Distribution

Achieving effective lighting coverage requires both powerful light sources and precise optics.

Lumen Output: Equipped with high-lumen SMD 5054 LED chips, all models consistently deliver a powerful 6000LM nominal luminous flux.
Color Temperature: Choose between 3000K (Warm White)or6000K (Cool White) to match the ambiance and required visibility for your project.
Precision Lens: The UV-proof optical lens boasts a light transmittance of >96%, channeling light into a wide 80°x150° distribution for maximum road coverage and minimal glare.

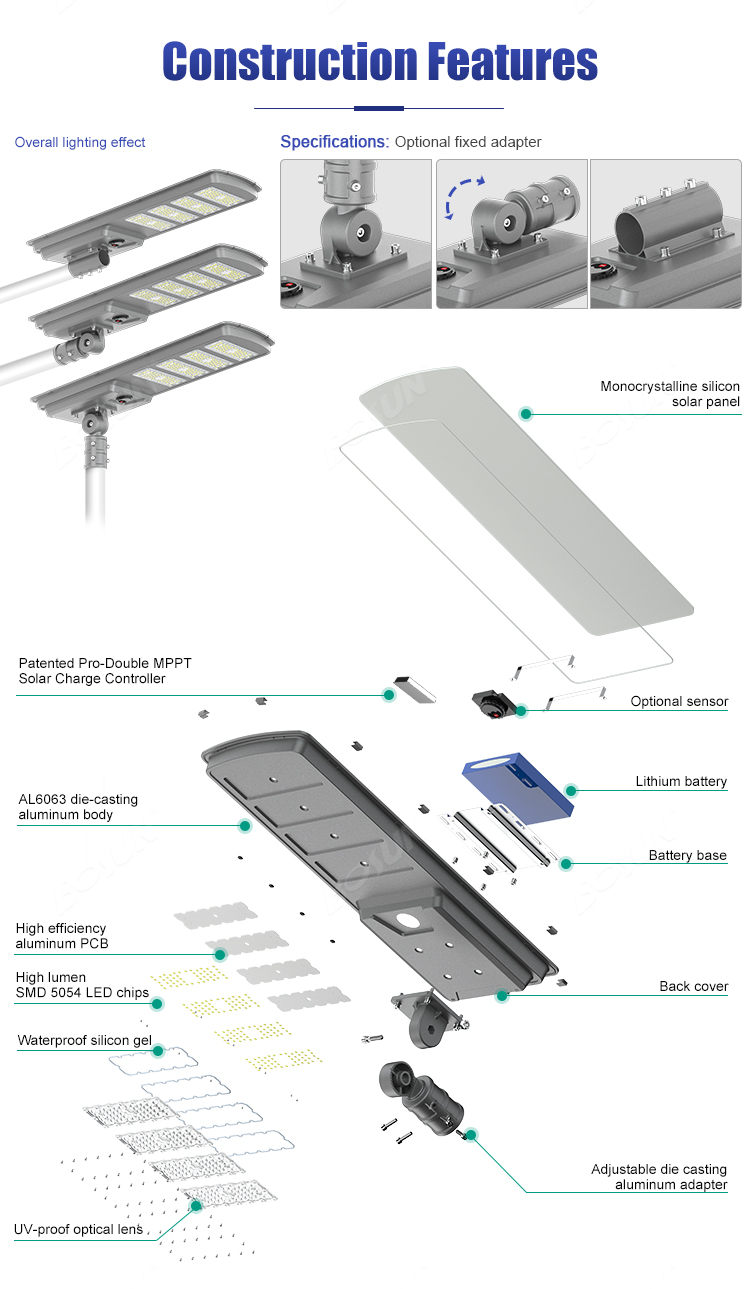

Industrial-Grade Construction

Material: Constructed from AL6063 Die-casting aluminum, providing excellent structural integrity, superior heat dissipation, and resistance to corrosion.
Weatherproof: The entire unit is rated IP65 Waterproof, thoroughly sealed to protect all internal components—including the battery and controller—from dust ingress and heavy rain.

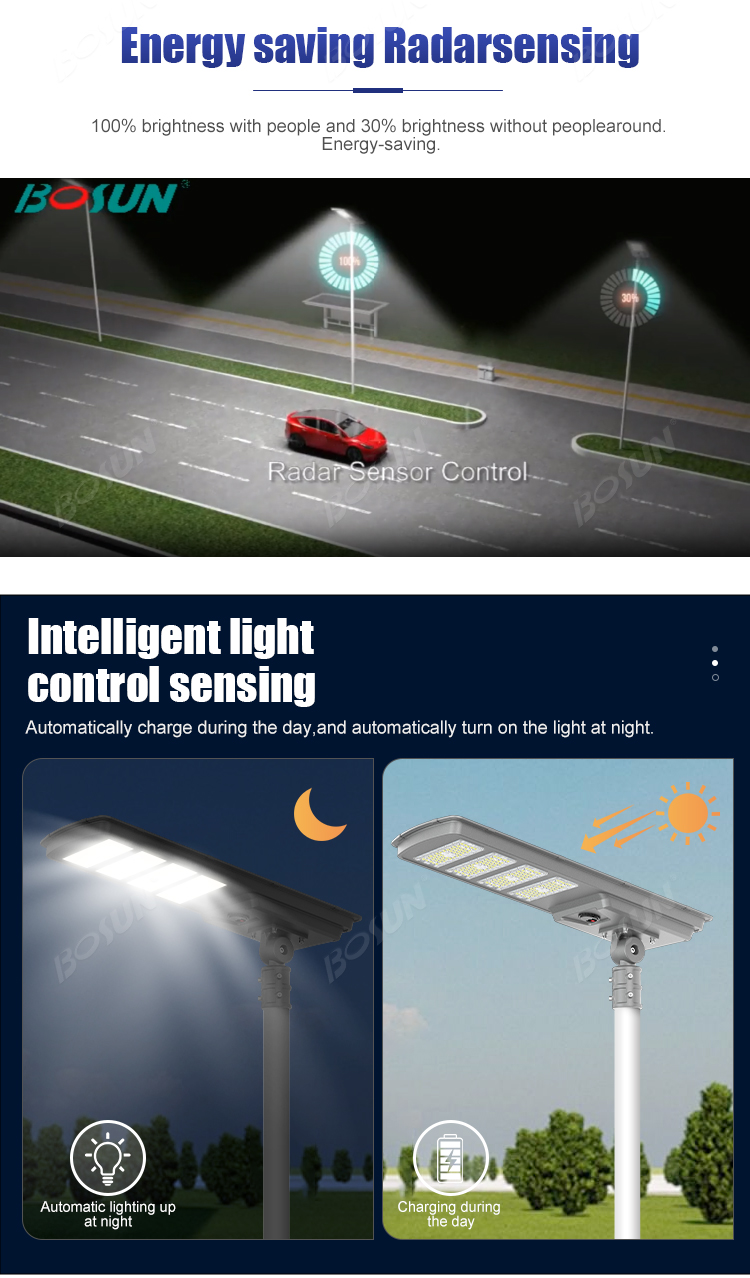

Intelligent Radar Sensing for Energy Saving

Our integrated Radar Sensor Control system optimizes energy consumption based on occupancy:

Dimming Mode: Operates at 30% brightness when no motion is detected, significantly conserving stored energy.
Full Power Mode: Automatically triggers 100% brightness when a vehicle or pedestrian enters the sensing zone.
Reliable Operation: The system features Intelligent Light Control Sensing, ensuring automatic charging during the day and automatic illumination at night.

Frequently Asked Questions

What is the practical lifespan of the All-in-One Solar Street Lightsystem?

The overall product lifespan is primarily determined by its key components. Our LiFePO4 battery is rated for over 2,000 cycles, providing reliable performance for 5-8 years. The LED module has a 50,000+ hour operational life.

Why is your patented MPPT controller superior to standard PWM controllers?

Our patented Pro-Double MPPT controller actively tracks the Maximum Power Point of the solar panel, increasing the charging yield by 40%-50% compared to passive PWM control. This superior efficiency is crucial for maintaining battery charge levels during periods of low irradiation, ensuring reliable night operation year-round.

How many consecutive days of autonomy (cloudy days) can the light handle?

Thanks to the large 50AH LiFePO4 battery capacity (in the JHB50 model) and the high efficiency of the MPPT charging system, the light is designed to provide up to 2-3 consecutive rainy or cloudy days of illumination, depending on the intensity of the motion sensor activation.

What is the optimal mounting height for the 50W (JHB50) model?

For the JHB50 (50W) model, we recommend an installation height between 6 to 8 meters (approx. 20-26 feet). This height, combined with the 6000LM outputand80°x150° lens, ensures effective, uniform lighting across a two-lane road or large industrial area.
