Wireless Controller with LED driver and communicate with LCU by LoRa-MESH

Wireless NEMA Controller with LED driver and communicate with LCU by LoRa-MESH

Model NO. BS-SC851/E(NEMA)

·Support LTE FDD、LTE TDD、WCDMA、 GSM Mode;
·Standard NEMA 7-PIN interface, plug and play;
·Remotely turn ON/OFF, built-in 16A relay;
·Support dimming interface: DALl and 0-10V;
·Failure detection: lamp failure, power failure, over voltage, over current.under voltage, power outrage;
·Automatically report failure notification to server and all trigger thresholds are configurable;
·Built-in power meter, support remotely read real-time status and parameters like voltage, current, power and energy etc;
·Built-in RTC, support scheduled task;
·Built-in photocell, auto control via lux value;
·Built-in temperature sensor, auto detect temperature,
·Built-in network indicator: easy for troubleshooting;
·Optional configuration: last gasp, GPs;
·Support online firmware upgrading(OTA);
·Lightning protection & lP65 waterproof.

Quantity

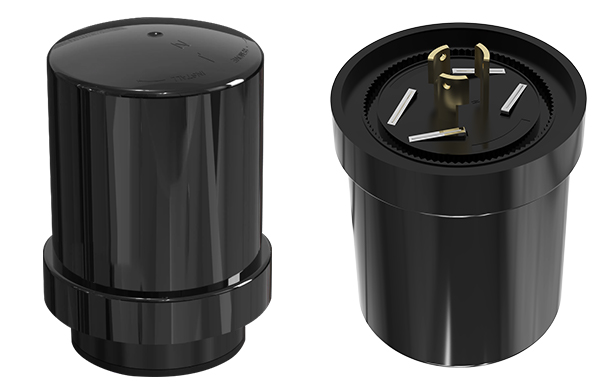

Gebosun® NEMA Street Light Controller

·Zigbee transmission, automesh;

·Standard NEMA 7-PIN interface, plug and play;

·Remotely turn ON/OFF, built-in 16A relay;

·Photocell auto control;

·Support dimming interface: 0-10v, and PwM (customizable);

·Remotely read electrical parameters: current, voltage, power, powerfactor and consumed energy;

·Support recording total energy consumed and resetting;

·Lamp failure detection and auto report to server;

·Optional module: GPs, tilt and RTC;

·Lightning protection;

·Waterproof: lP65;

**Basic Info**
Model		BS-SC851/E
Relay		1-route,250V/16A
AC Input	Voltage Range	96V-264VAC
	Frequency Range	50-60Hz
	Current Range	0-4A
	Static Power	<2W
AC Output	Voltage Range	Same as input
	Frequency Range	50-60Hz
	Current Range	0-4A
	Max Load	≤1000W

**Data Reading**
Voltage Detection	96V-264VAC
Current Detection	0-2A
Data Accuracy	≤3%
Active Power Calc	Yes
Power Factor Calc	Yes
Energy Record	Yes

**Communication Performance**
Mode	BS-SC851/E-Z	BS-SC851/E-M
Transmission	ZigBee / LoRa-MESH
Route	MESH
Distance	150M (Visible)
Frequency	2.4GHz~2.485GHz	902MHz~928MHz
Channels	16	10
Speed	250Kbps

**Other Functions**
Failure Report	Automatically report, query to report
Failure Type	Lamp failure, Power failure, Over Voltageover current, Under voltage
Frequency	Photocell auto control, threshold configurable
Record Energy	Record total energy consumed and reset

**Dimming Info**
Mode	PWM	Analog Voltage
Output	5V/400Hz (adjustable)	0-10V/10mA
Note	Preset 100% PWM=1 or0	Preset 100%,Voltage=10V or 0V

**Working Environment**
Temperature	Automatically report, query to report
Humid	<95%
Waterproof	IP65
Size	Diameter 84mm, Height 98mm
Weight	0.3 KG
