Xi EP LV 250W 4.0-8.3A WL I215 Driver
Xitanium Essential Programmable (EP) LED drivers are designed for maximum reliability and flexibility, making it a preferred choice for different Outdoor applications. The key feature AOC (Adjustable Output Current ) can be programmed with the new e-set tool, a simple and fast way to configure the driver without the need to power on the driver and without the need for any software configuration. Xitanium EP Low Voltage (LV) drivers are specifically designed for low voltage outdoor applications. Having high surge immunity, these durable, independently housed drivers deliver consistent, high performance to luminaires. It is an ideal solution for OEMs who need reliable, adjustable output current in a rugged independent form factor.
Quantity
Xitanium Outdoor Essential Programmable Low Voltage LED Drivers
Xitanium Essential Programmable (EP) LED drivers are designed for maximum reliability and flexibility, making it a preferred choice for different Outdoor applications. The key feature AOC (Adjustable Output Current ) can be programmed with the new e-set tool, a simple and fast way to configure the driver without the need to power on the driver and without the need for any software configuration.
Xitanium EP Low Voltage (LV) drivers are specifically designed for low voltage outdoor applications. Having high surge immunity, these durable, independently housed drivers deliver consistent, high performance to luminaires. It is an ideal solution for OEMs who need reliable, adjustable output current in a rugged independent form factor.
Xi EP LV 65W 0.9-2.2A WL I120
9290 033 92680
Xi EP LV 100W 1.3-3.4A WL I155
9290 033 92780
Xi EP LV 150W 2.0-5.0A WL I175
9290 033 92880
Xi EP LV 200W 3.0-6.7A WL I195
9290 033 92980
Xi EP LV 250W 4.0-8.3A WL I215
9290 033 93080
Xitanium Essential Programmable (EP) LED drivers are designed for maximum reliability and flexibility, making it a preferred choice for different Outdoor applications. The key feature AOC (Adjustable Output Current ) can be programmed with the new e-set tool, a simple and fast way to configure the driver without the need to power on the driver and without the need for any software configuration.
Xitanium EP Low Voltage (LV) drivers are specifically designed for low voltage outdoor applications. Having high surge immunity, these durable, independently housed drivers deliver consistent, high performance to luminaires. It is an ideal solution for OEMs who need reliable, adjustable output current in a rugged independent form factor.
Benefits
• Low voltage/high current output fits low voltage outdoor applications
• AOC (Adjustable Output Current) gives full flexibility to output different currents to spec-in different projects
• Compact housing saves luminaire space
• Easy adjustment of output current/voltage saves time and labor cost
• Robust design offers peace of mind and saves maintenance cost
• IP rated housing allows use in a non-fully sealed gearbox
Features
• 100-277V input voltage
• Low voltage/high current output
• Adjustable Output Current (AOC)
• Compact housing dimensions
• Digital way to adjust output current called e-set tool
• Robust specifications for moisture, vibration, and temperature protection
• IP67
Application
• Road and street lighting | • Area and flood lighting | • Tunnel lighting | • High-bay lighting
Electrical input data
Specification item | Value | Unit | Condition |
Rated input voltage range | 200...254 | Vac | Performance range |
Rated input voltage | 230 | Vac | |
Rated input frequency range | 47...63 | Hz | Performance range |
Rated input current | 0.32|0.5|0.71|1|1.2 | A | @ rated output power @ rated input voltage |
Max. input current | 0.41|0.6|0.9|1.1|1.4 | A | @ rated output power @ minimum performance input voltage |
Rated input power | 73|110|163|220|275 | W | @ rated output power @ rated input voltage |
Power factor | 0.95 | @ rated output power @ rated input voltage | |
Total harmonic distortion | 10 | % | @ rated output power @ rated input voltage |
Efficiency | 88|91|91|93|92 | % | @ rated output power @ rated input voltage @max. Uout |
Input voltage AC range | 85...305 | Vac | Operational range |
Input frequency AC range | 45...66 | Hz | Operational range |
Isolation input to output | Double |
Electrical input data
Specification item | Value | Unit | Condition |
Regulation method | Constant Current | ||
Output voltage | 24...50 | Vdc | |
Output voltage max. | 60 | V | Maximum output voltage (rms) |
Output current | 0.9...2.2|1.3...3.4|2...5|3...6.7|4...8.3 | A | |
Output current min programmable | 4000 | mA | |
Output current tolerance ± | 5 | % | At max. output currentt, Ta=25°C |
Output current ripple LF | ≤ 5 | % | Ripple = peak / average, < 1kHz |
Output current ripple HF | ≤ 5 | % | |
Output Pst LM | ≤ 0.1 | In entire operating window | |
Output SVM | ≤ 0.1 | In entire operating window | |
Output power | 21.6...65|31.2...100|48...150|72...200|96...250 | W | Rated output power is 65W|100W|150W|200W250W |
Electrical data controls input
Specification item | Value | Unit | Condition |
Control method | Fixed |
Wiring and Connections
Specification item | Value | Unit | Condition |
Input wire cross-section | 1/17 | mm2 / AWG | 3x 1.0mm2 stranded wires, waterproof cable |
Output wire cross-section | 1/17 | mm2 / AWG | 2x 1.0mm2 stranded wires, waterproof cable |
Maximum cable length | 2 | m | Total length of wiring including LED module, one way |
Insulation
Insulation per IEC61347-1 | Input | Output | Ground |
Input wire cross-section | Double | Basic | |
Output wire cross-section | Double | Basic | |
Maximum cable length | Basic | Basic |
Storage temperature and humidity
Specification item | Input | Output | Ground |
Ambient temperature | -40...+80 | ºC | |
Relative humidity | 5...95 | % | Non-condensing |
Programmable features
Specification item | Available | Default setting |
Set Adjustable Output Current (AOC) | NFC | 1300|2000|3000|4000|5000 mA |
Operational temperatures and humidity
Specification item | Value | Unit | Condition |
Ambient temperature | -40...+55 | ºC | Higher ambient temperature allowed as long as Tcase-max is not exceeded |
Tcase-max | 90 | ºC | Maximum temperature measured at Tcase-point |
Relative humidity | 10...90 | % | Non-condensing |

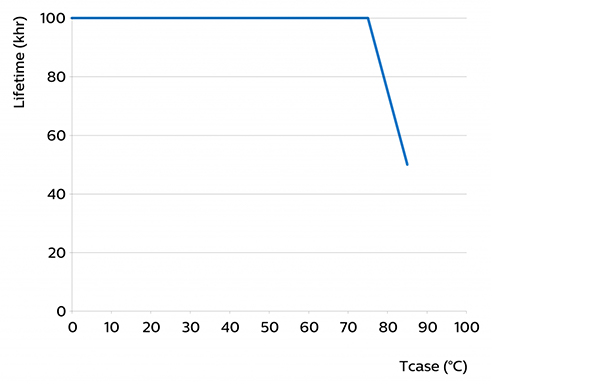

Lifetime
Specification item | Value | Unit | Condition |
Driver lifetime | 50,000 | hours | Measured temperature at Tcase-point is 85°C. Maximum failures = 10% |
Features
Specification item | Value | Condition |
Open load protection | Yes | Automatic recovering |
Short circuit protection | Yes | Automatic recovering |
Over power protection | Yes | Automatic recovering |
Hot wiring | No | |
Suitable for fixtures with protection class | I | per IEC60598 |
Overtemperature protection | Yes | Automatic recovering, refer to thermal guard curve |
Driver touch current / protective conductor current
Specification item | Value | Unit | Condition |
Typical Protective Conductor Current (ins. Class I) | 0.7 | mA rms | Acc. IEC60598-1. LED module contribution not included |
Inrush current
Specification item | Value | Unit | Condition |
Inrush current | 35|65|71|72|77 | A | Input voltage 230V |
Inrush peak width | 179|151|212|276|296 | µs | Input voltage 230 V, measured at 50% height |
Drivers / MCB 16A type B | ≤18|≤10|≤5|≤4|≤3 | pcs | Indicative value at 230V |
Surge immunity
Specification item | Value | Unit | Condition |
Mains surge immunity (diff. mode) | 6 | kV | Acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us |
Mains surge immunity (comm. mode) | 6 | kV | Acc.IEC61000-4-5. 12 Ohm 1.2/50us,8/20us |
Application Info
Specification item | Value |
Approval marks and Certifications | CB / CCC / CE / ENEC / RCM / SELV / UKCA |
Ingress Protection classification (IP) | 67 |
Application | Outdoor |
Mounting Type | Independent |

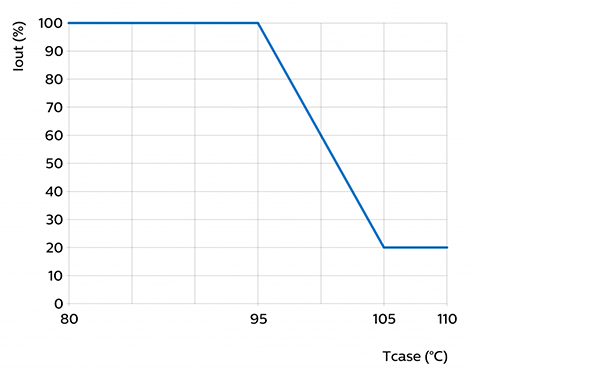

Thermal Guard
Mains Guard
