Solar Street Light Pro-Double MPPT Solar Charge Controller

Model NO. BS-PDM-TMAX2.0

Battery system voltage：3.2V | 3.7V | 6.4V | 7.4V | 9.6V | 11.1V | 12.8V

Quiescent power consumption：5mA | 13mA | 20mA | 20mA | 20mA | 20mA | 20mA

Maximum PV input voltage：<24V

Maximum PV open circuit voltage：30V(Exceeding this voltage will trigger protection)

MPPT voltage range：8~24V

Maximum battery charging current：MAX=15A

Maximum PV input power：55W | 65W | 110W | 125W | 150W | 180W | 200W

Light control voltage：5V

Light control delay time：5S

Boost charging voltage：3.6V | 4.2V | 7.2V | 8.4V | 10.8V | 12.6V | 14.4V

Quantity

Full Protection-Quality Ensured

1.Over charge protection

2.Over discharge protection

3.Over temperature protection

4.Open circuit protection

5.Output short circuit protection

6.Maximum current changing protection

7.PV/LED/Battery Reverse connection protection

8.Maximum current output protection

More Powerful

≥99.5％-The maximum tracking efficiency ≥99.5%

≥97.0％-The maximum charging efficiency ≥97.0%

≥95.0％-The maximum discharging efficiency ≥95%

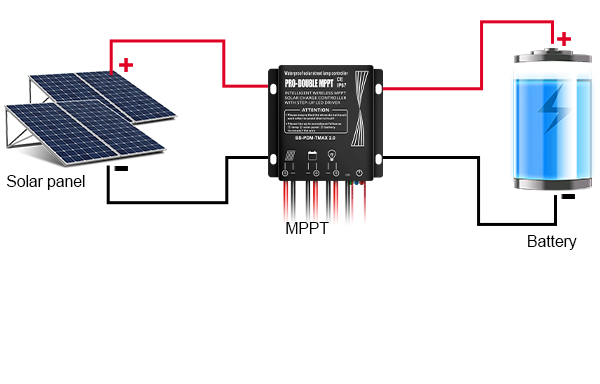

· MPPT maximum power tracking technology, tracking efficiency up to 99.5%, maximum charging conversion efficiency up to 95.7%;

· Maximum discharge efficiency up to 95%;

· Battery type: 3.2V /6.4V/7.4V lithium;

· Voltage threshold at night and day: 1.25V/2.5V;

· With power saving mode, the load power can be automatically adjusted according to the batterypower;

· 4 power saving modes are available, and the load power can be automatically adjusted accordingto the battery power,

· Unique step-down constant current output control, the maximum discharge eficiency is up to 98%;

· Can be connected to an external 3G radar sensing module;

· Can choose radar mode or time control mode;

· With switch line, the switch state of the controller can be controlled through the switch line;

· With overcharge protection and over-discharge protection;

· Waterproof grade lP67, working temperature -30°C~60°c, can work in various harsh environments

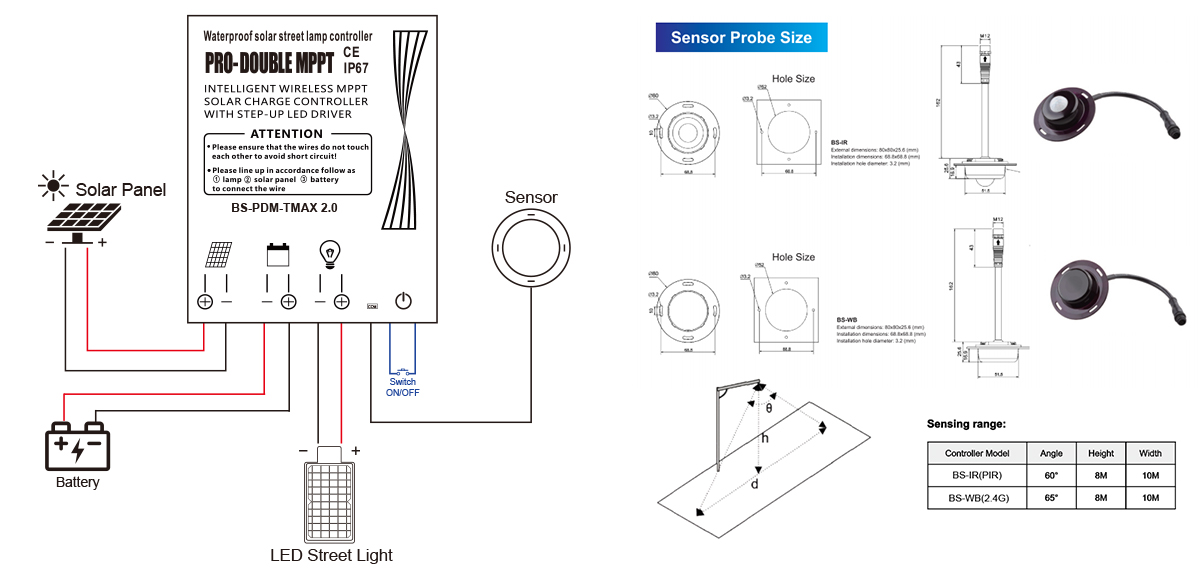

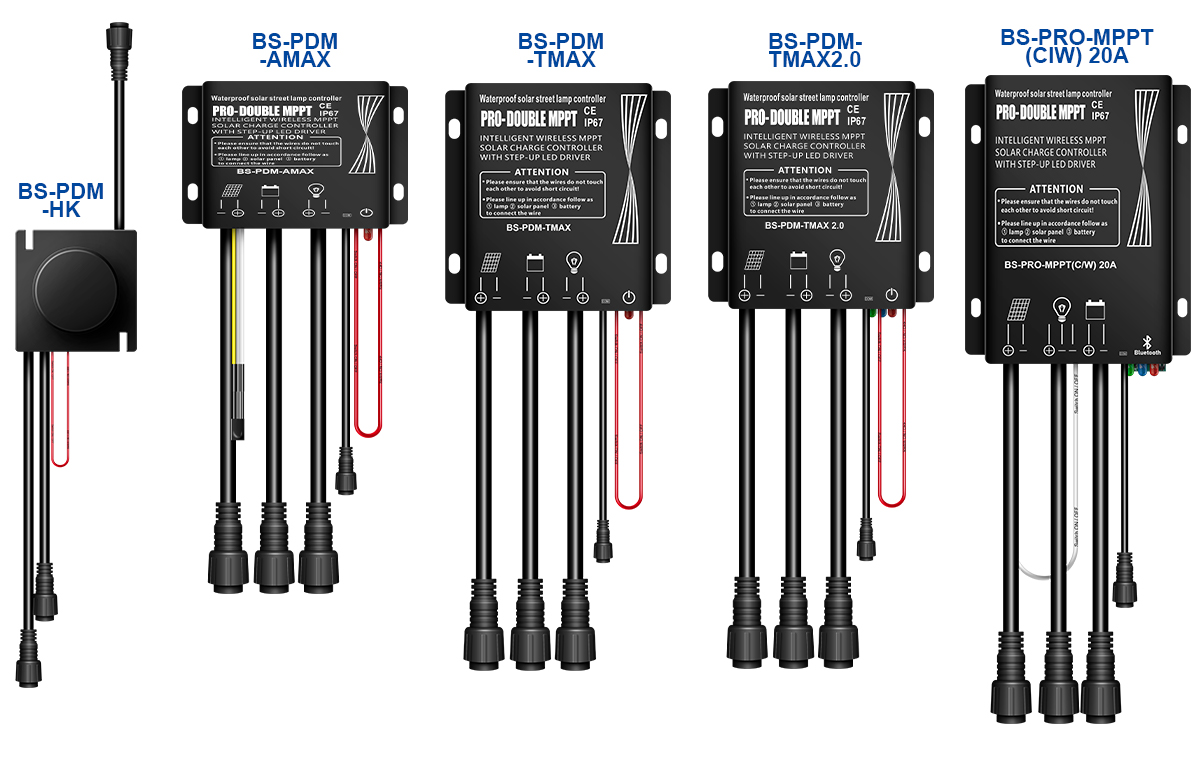

BOSUN Pro-Double MPPT Soalr Charge Controller Series

BOSUN`s Pro-Double MPPT Soalr Charge Controller has multiple series and multiple power versions to easily adapt to your solar equipment

Parameter
Model	BS-PDM-TMAX2.0
Controller parameters	Parameter value
System voltage	3.2V	6.4V	7.4V	9.6V	11.1V	12.8V
Load current	1A-8A
Load voltage	3V	6V	6V	9V	12V	12V
Load maximum power	24W	48W	54VV	72W	90W	80W
Load conversion efficiency	97.4%	99.3%	95.2%	95.5%	95.5%	95.3%
Load current accuracy	±50mA
Intelligent power saving mode	YES
Load working period	You can select one of the four dis charge curves through the mobile phone APP
Battery System Settings	You can select 3.2V \| 6.4V \| 7.4V \| 9.6V \| 11.1V \| 12.8V through the mobile phone APP
Induction delay	25S
Induction range	Microwave induction H: 6~10m,L:7~10m
Solar maximum input power	80W	120W	120W	150W	180W	180W
Maximum charging current	10A
Solar maximum input voltage	6-18V
MPPT tracking efficiency	>99%
Charging conversion efficiency	96%
Overcharge voltage	3.6V	7.2V	8.4V	10.8V	12.6V	13.6V
Overcharge return voltage	3.5V	7.1V	8.3V	10.6V	12.5V	13.4V
Over-discharge voltage	2.7V	5.4V	6.4V	8.1V	10V	10.8V
Over discharge return	2.9V	5.6V	6.6V	8.3V	10.5V	11V
Light on voltage	<1.25V	<1.25V	<1.25V	<2.5V	<5V	<5V
Light off voltage	>2.5V	>2.5V	>2.5V	>3.5V	>6V	>6V
Protection level	IP67
Protection function	Overcharge protection,over discharge protection,short circuit protection.over current protection

Indicator Status
Indicator	Green	Red	Blue	Indicator Light Description
Status	Always on	Slow Flash	/	Daytime mode, charging
	Always on	Always on	/	Daytime mode, battery is fully charged
	Always on	Fast Flash	/	Day mode,controller temperature is to0high
	Fast Flash	Fast Flash	/	Battery short circuit
	Always on	/	Always on	Night mode, discharging
	Always on	/	Fast Flash	Night mode, output short circuit
	Fast Flash	/	Always on	Night mode,low battery voltage
