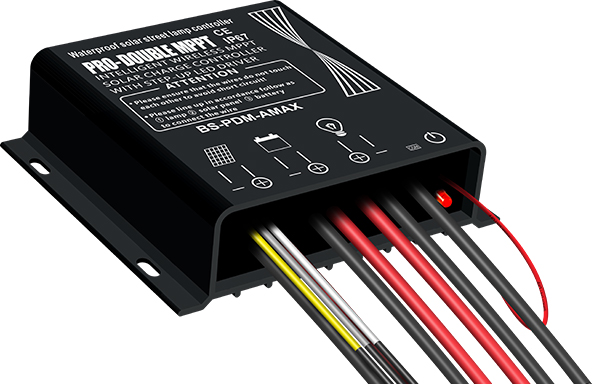

Solar Street Lamp Controller BS-PDM-AMAX
PRO-PDM-AMAX
· MPPT maximum power tracking technology, tracking efficiency up to 99.5%, maximum chargingconversion efficiency up to 97%.
· Maximum discharge efficiency up to 95%.

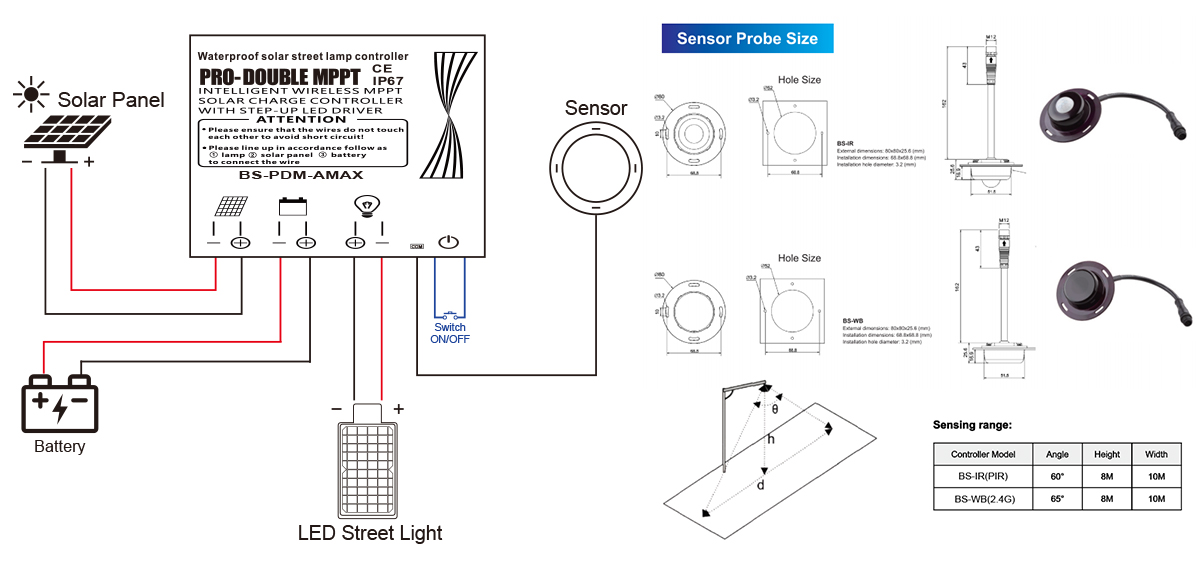

· Can be connected to an external 3G radar sensing module.
· Battery type: 3.2V lithium.
· Voltage threshold for night and day: 1.25/2.5V.
· Power saving mode, can automatically adjust load power according to battery power.

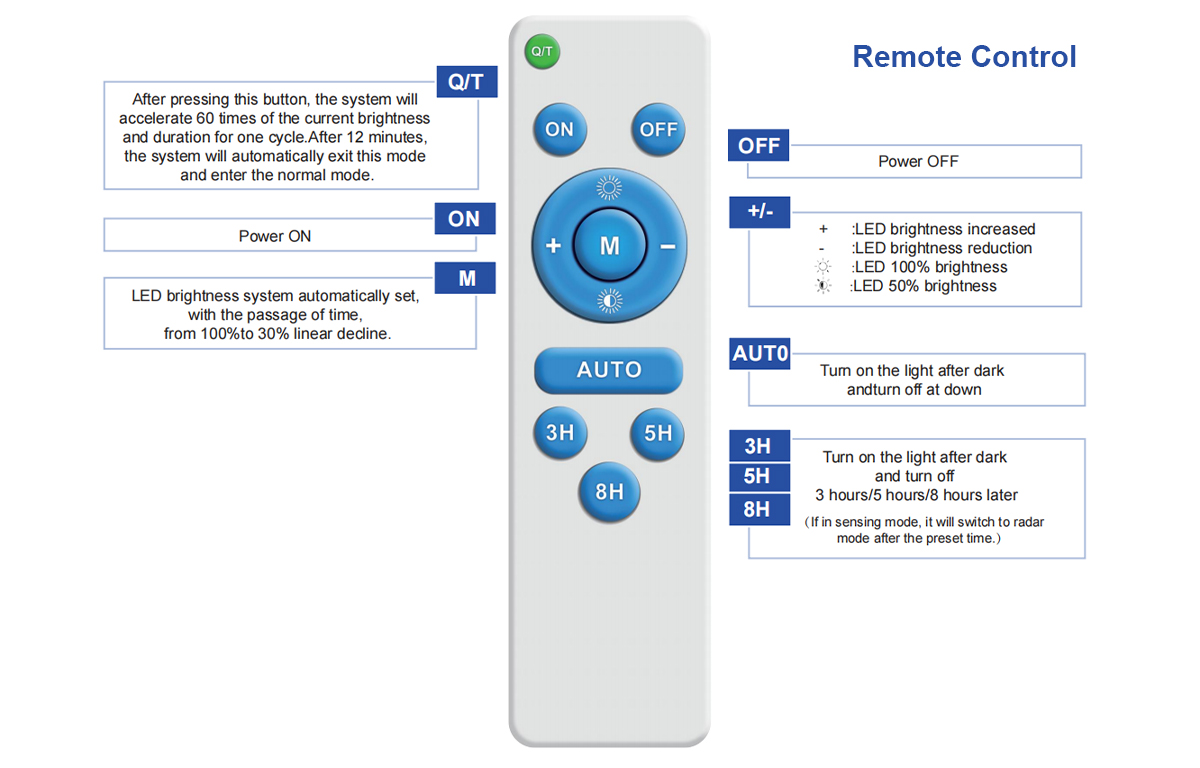

· Can choose radar mode or time control mode.
· Waterproof grade lP67, working temperature -30°C~60'C, can work in various harsh environments.
· Maximum discharge efficiency up to 95%.
· Can be connected to an external 3G radar sensing module.
· Battery type: 3.2V lithium.
· Voltage threshold for night and day: 1.25/2.5V.
· Power saving mode, can automatically adjust load power according to battery power.
· Can choose radar mode or time control mode.
· Waterproof grade lP67, working temperature -30°C~60'C, can work in various harsh environments.
Quantity
Full Protection-Quality Ensured
1.Over charge protection
2.Over discharge protection
3.Over temperature protection
4.Open circuit protection
5.Output short circuit protection
6.Maximum current changing protection
7.PV/LED/Battery Reverse connection protection
8.Maximum current output protection
More Powerful
≥99.5％-The maximum tracking efficiency ≥99.5%
≥97.0％-The maximum charging efficiency ≥97.0%
≥95.0％-The maximum discharging efficiency ≥95%
· MPPT maximum power tracking technology, tracking efficiency up to 99.5%, maximum chargingconversion efficiency up to 97%.
· Maximum discharge efficiency up to 95%.
· Can be connected to an external 3G radar sensing module.
· Battery type: 3.2V lithium.
· Voltage threshold for night and day: 1.25/2.5V.
· Power saving mode, can automatically adjust load power according to battery power.
· Can choose radar mode or time control mode.
· Waterproof grade lP67, working temperature -30°C~60'C, can work in various harsh environments.

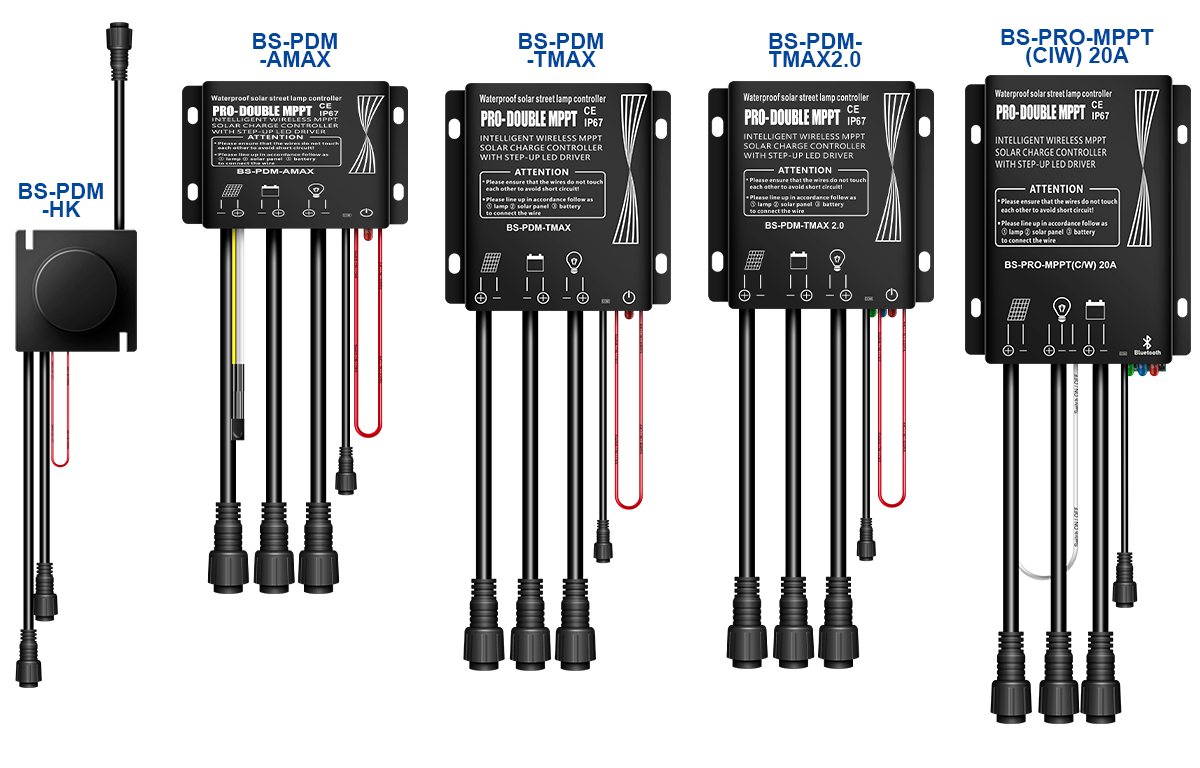

BOSUN Pro-Double MPPT Soalr Charge Controller Series
BOSUN`s Pro-Double MPPT Soalr Charge Controller has multiple series and multiple power versions to easily adapt to your solar equipment
| Parameter | |
Model | BS-PDM-AMAX |
| System voltage | 3.2V |
| Load current | 1A-8A |
| Load voltage | 3V |
| Load maximum power | 24W |
| Load conversion efficienCy | 97% |
| Load current accuracy | 士50mA |
| Intelligent power saving mode | Yes |
| Load working mode | A variety of discharge curves can be selected in the mobile phone APP. |
| Initial current setting | The initial current can be set from 1A to 8A in the mobile phone app. |
| Induction delay | 25S |
| Induction range | 8-12M |
| Solar maximum input powe) | 40W |
| Maximum charging current | 10A |
| Solar maximum input voltage | 6-12V |
| MPPT tracking efficiency | >99% |
| Charging conversion efficiency | 95% |
| Overcharge voltage | 3.6V |
| Overcharge return voltage | 3.5V |
| Over discharge voltage | 2.8V |
| Over discharge return | 3.0V |
| Light on voltage | <1.25V |
| Light off voltage | >2.5V |
| Protection function | Overcharge protection,over-discharge protection |
| Indicator Status | ||
| Indicator | Red | Indicator Light Description |
| Status | Charge | Flickering |
| Discharge | After flashing Extinguish | |
