BS-FY Solar Street Light: 220LM/W Ultra-Bright Sealed Panel Design

Model NO. BS-FY Series

Model：BS-FY50B BS-FY65B BS-FY80B BS-FY90B BS-FY100B

Solar Panel：50W/18V 65W/18V 80W/18V 90W/18V 100W/18V

Battery：60Ah/3.2V 45Ah/6.4V 60Ah/6.4V 75Ah/6.4V 90Ah/6.4V

LED Module：72pcs*1(5050) 72pcs*2(5050) 72pcs*3(5050) 72pcs*3(5050)

Lumens：5000lm-12000lm

Beam Angle：75°*150°

Quantity

BS-FY Series: Ultra-High Brightness (220LM/W) Sealed Panel Solar Street Light

Engineering Reliability for Extreme Environments

The BS-FY Series represents the pinnacle of solar lighting efficiency and durability. Designed specifically for high-temperature and high-dust environments (such as deserts and coastal regions), this series integrates BOSUN’s proprietary Pro-Double MPPT technology with a revolutionary Fully Sealed Panel Design. Delivering an industry-leading 220LM/W, the BS-FY ensures that your project benefits from maximum illumination with minimum energy consumption.

Feature	BS-FY50B	BS-FY80B	BS-FY90B	BS-FY100B
Luminous Flux	5000LM	8000LM	10000LM	12000LM
Solar Panel	50W/18V	80W/18V	90W/18V	100W/18V
Battery (LiFePO4)	60AH/3.2V	60AH/6.4V	75AH/6.4V	90AH/6.4V
Operating Temp	-40°C to 65°C	-40°C to 65°C	-40°C to 65°C	-40°C to 65°C
IP Rating	IP65	IP65	IP65	IP65

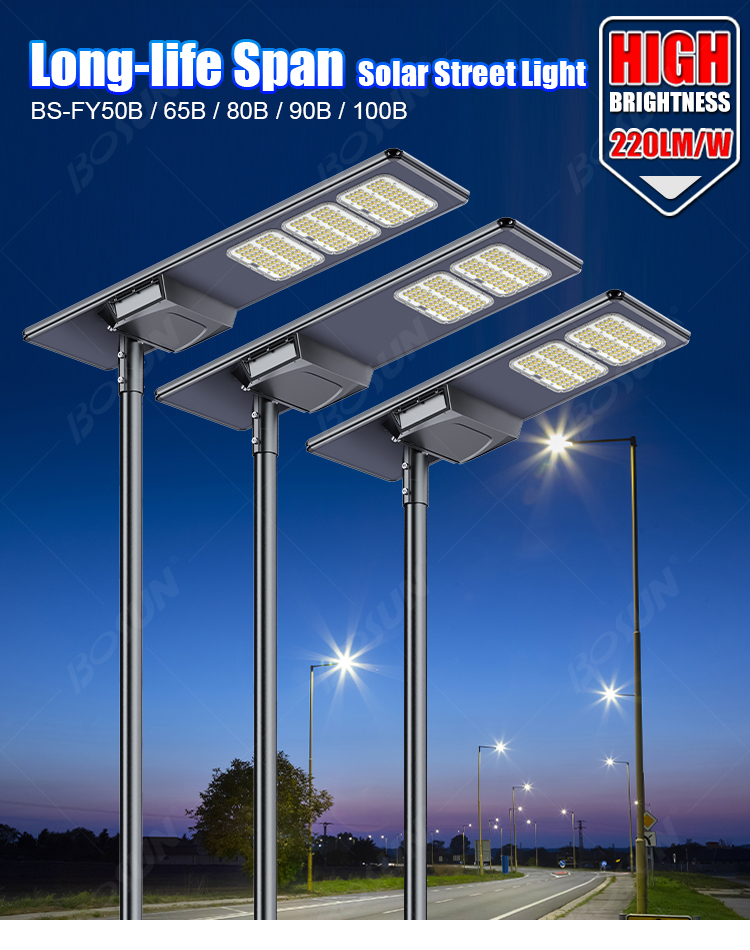

high brightness long life span solar street light

220LM/W Ultra-Bright LED Technology

While standard solar lights range between 130-160LM/W, the BS-FY series utilizes industrial-grade LED chips to achieve a staggering 220LM/W.

Benefit: It provides higher ground illuminance (up to 12,000LM) using the same solar footprint, reducing the number of poles required for your project and lowering overall costs.

Fully Sealed Panel: Anti-Dust & Anti-Moisture

Dust accumulation and internal fogging are the primary causes of light decay in traditional street lights.

The Solution: The BS-FY features a fully sealed die-casting aluminum housing. This design protects the sensitive optical lenses and LED chips from sand, humidity, and salt spray.
Durability: This hermetic seal ensures that the high-brightness performance remains consistent over an 8-year maintenance-free lifespan.

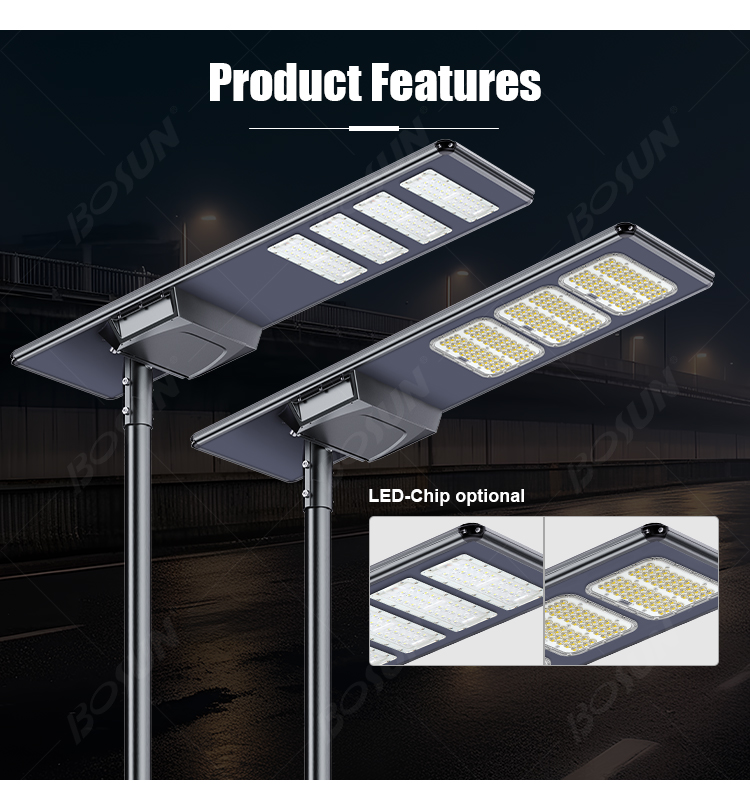

FY series solar street lights offer a choice of LED beads

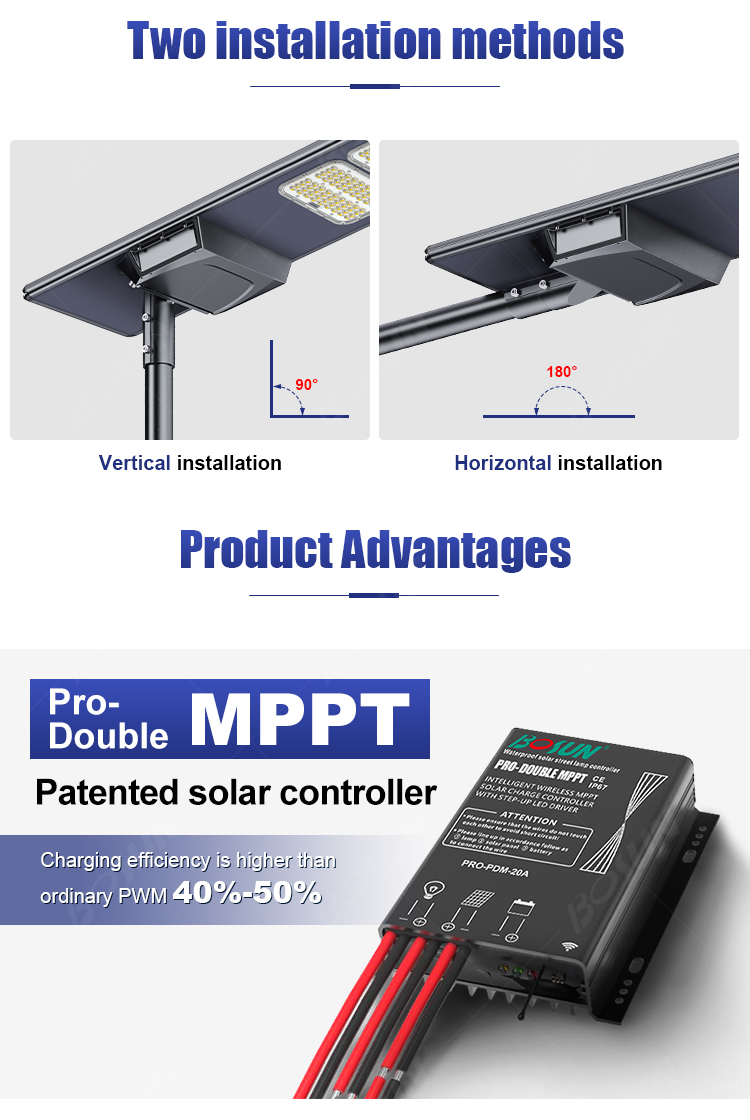

The FY series solar street lights offer two installation methods with adjustable angles

BrandNew A+ LiFePO4 BatterySystem

We refuse to compromise on energy storage. The BS-FY series is powered by Brand New A+ 32700 LiFePO4 batteries.

Long Cycle Life: Offers over 2,000 deep discharge cycles, ensuring the system's"heart"lasts as long as the high-efficiency solar panels and LEDs.

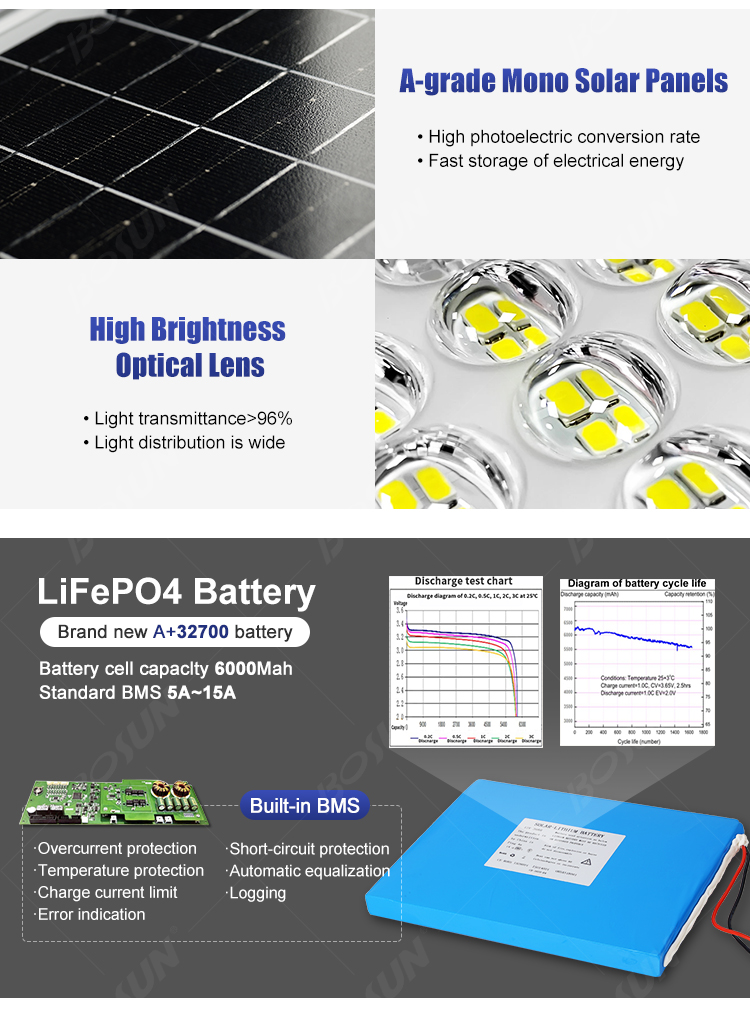

a grade mono solar panels and high brightness optical lens

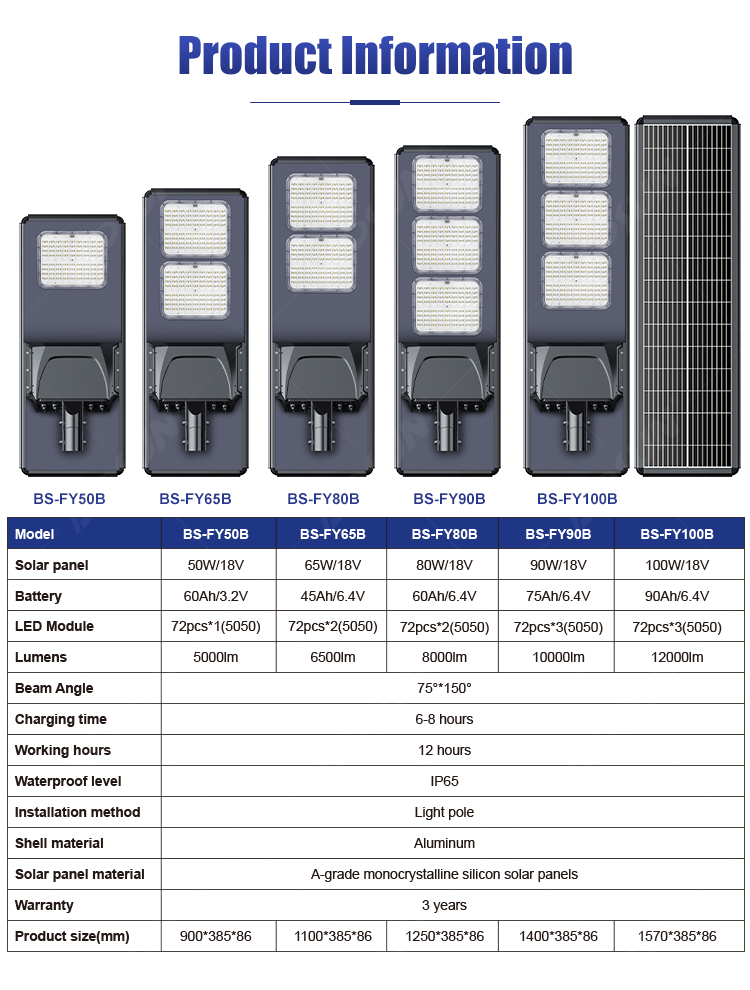

FY Series Solar Street Light Product Specifications Table

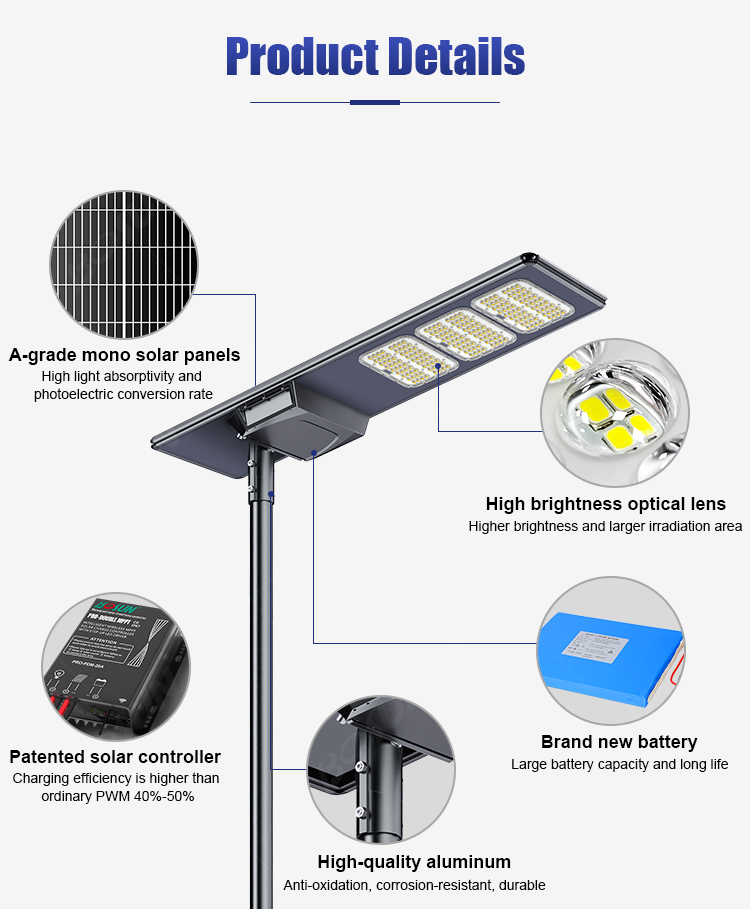

Internal structure of BS-FY solar light showing A-grade mono solar panel, Patented Pro-Double MPPT, and LiFePO4 battery

PatentedPro-Double MPPT Controller (65°C Ready)

Standard controllers often fail or throttle power in extreme heat.

High-Temperature Resistance:OurPatented Pro-Double MPPT Controller is engineered to operate reliably in ambient temperatures up to 65°C.
Charging Efficiency: It increases energy harvest by 40%-50% compared to PWM controllers, ensuring the light stays on throughout the night, even during the shorter daylight hours of winter.

bosun lighting solar street light widely application in high low temperature area

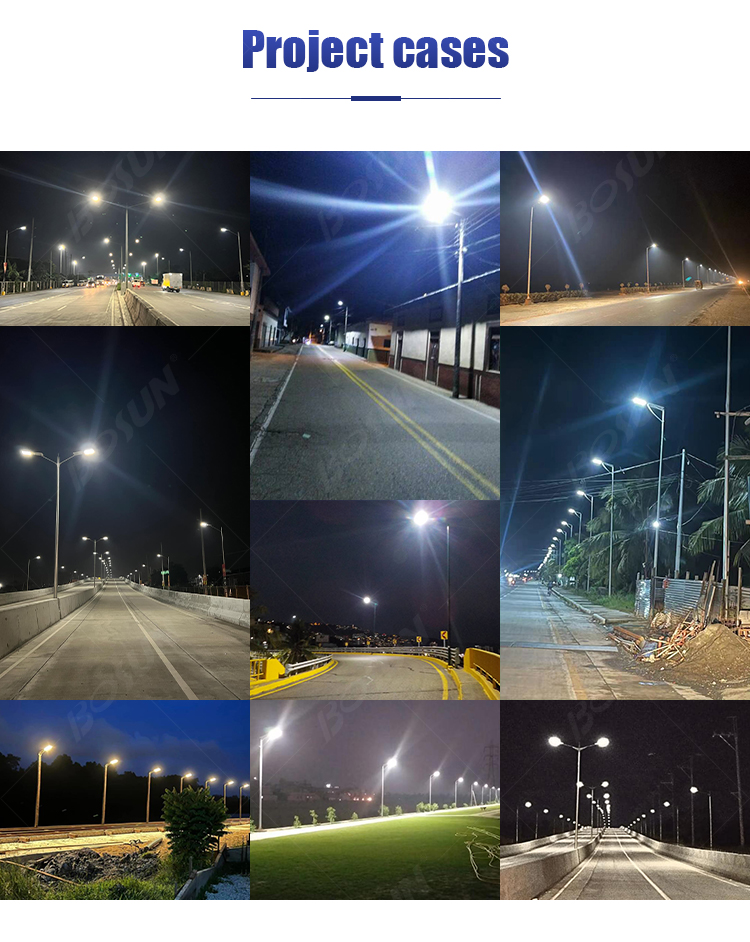

bosun lighting all in one solar street light project cases

Frequently Asked Questions

Why is a sealed panel necessary for desert environments?

A sealed panel prevents fine sand and dust from entering the optical chamber, which would otherwise coat the LED chips and reduce brightness by up to 50% over time. By maintaining an airtight seal, the BS-FY series ensures the 220LM/W efficiency remains constant regardless of local environmental conditions.

How does the Pro-Double MPPT controller handle extreme heat?

Unlike standard controllers that risk overheating, the BOSUN Pro-Double MPPT is built with industrial-grade components and an optimized heat dissipation structure. It is rated for stable operation at 65°C, ensuring efficient power conversion and battery protection in the world’s hottest regions without the risk of system shutdown.

Why is a sealed panel design important for high-brightness solar street lights?

A sealed panel design protects high-performance LED chips and optical lenses from environmental contaminants like dust, moisture, and salt spray. This ensures the 220LM/W ultra-bright LEDs maintain their luminous flux and prevents internal fogging that can reduce light output.

How does the BS-FY series achieve 220LM/W ultra-high brightness?

The BS-FY series achieves 220LM/W brightness by combining high-efficiency SMD 5054 LED chips with a proprietary Pro-Double MPPT controller. This system optimizes the power-to-lumen ratio, delivering up to 12,000LM of output while minimizing energy waste through superior heat dissipation.
