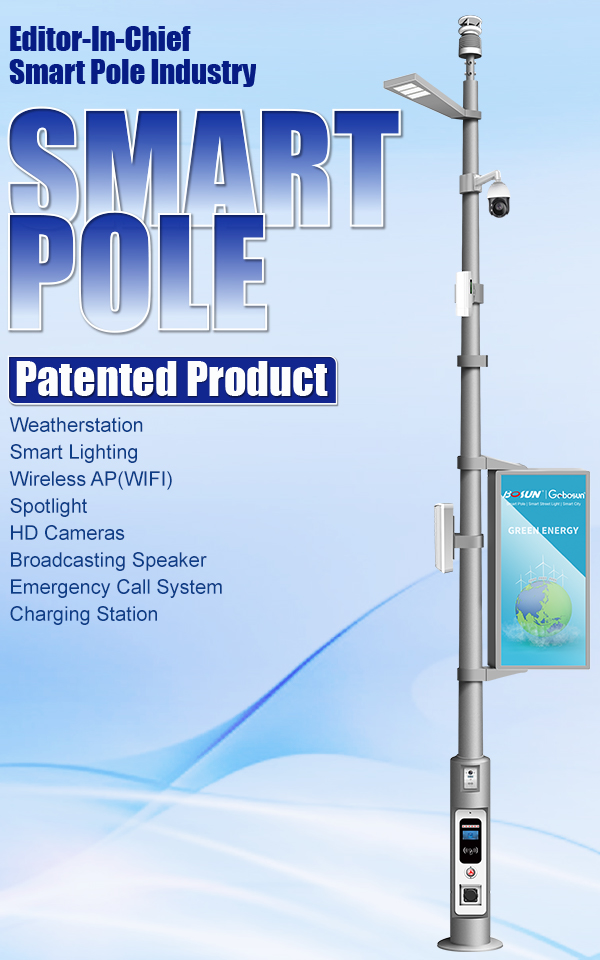

Modularity Smart Pole - 14
This smart poles-14 is the most cost-effective product of all, with emphasis on the optional pole, customers can choose Gebosun's pole or their pole and Gebosun can make a customized lighting design solution according to what kind of pole customers provide and the local situation. The smart poles-14 features multiple functional devices such as a weather station, smart lighting, sensor, RGB status light, HD camera, wireless AP(WIFI), broadcasting speaker, LED/LCD touchscreen display, emergency call system, wire and wireless charging port, and charging station.

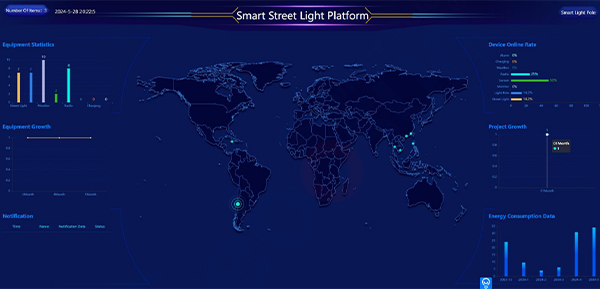

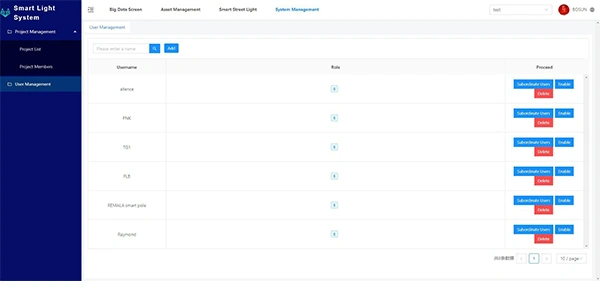

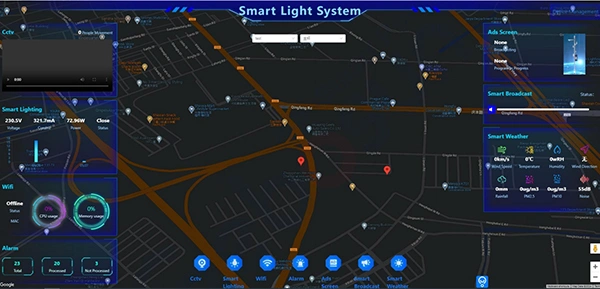

SCCS (Smart City Control System)
Is a city intelligent devices management system and built-in SSLS（Smart Street Light System), which was independently developed by Gebosun®. It has strong functions such as data display on a large screen, devices management, ERP asset management, operation and maintenance management, user (sub-account) management, and integration with third-party systems to achieve more intelligent management. Gebosun® SCCS system can be used normally on the following devices: PC/iPad/mobile app (Android). Intelligent smart poles for smart cities connect with city infrastructure.
Application Scenarios of Smart Poles 14
City roads:used for road lighting, at the same time can be integrated with traffic monitoring, environmental monitoring, and other functions.
Parks and squares: provide lighting while realizing public broadcasting, information release, etc.
Parking lot: assist vehicle guidance, monitoring, etc.
Scenic spots: to enhance the level of scenic spot intelligence, such as intelligent lighting control, visitor information services, etc.
Smart Cities Connect To Intelligent Devices
Weather Station
Collect and send data to the monitoring center by concentrator, such as weather, temperature, humidity, lighting, PM2.5, noise, rainfall, wind speed, etc.
-------------------------------------------------------------------------------------------------
Smart Street Lighting
Smart street lighting Cellular cooling technology Intelligent single lamp / centralized controller Light distribution based on uniform brightness Various modular design lamp caps are optional
-------------------------------------------------------------------------------------------------
HD Cameras
Monitor traffic and security lighting. It is the secure monitor equipment through HD cameras for surveillance on the pole.
-------------------------------------------------------------------------------------------------
Wireless AP(WIFI)
Public Speaker
Emergency Call System
LED Display
SMART POLES & SMART CITY
(SCCS-Smart City Control System)
1. Smart City Control System： Cloud-based structure that supports high concurrent data access.
2. Fast and seamless access to third-party systems, such as SCCS smart city system access.
3. Distributed deployment system which can expand RTU capacity easily.
4. A variety of system security protection strategies to ensure software security and stable operation.
5. Boot self-running service support.
6. Support a variety of database clusters and large databases, automatic data backup .
7. Cloud service technical support and maintenance.
SCCS Structure
·The system features
Fault alarms
Easy installation
Lamp and line status
Power quality metering
Remote monitoring（turn on/off, dimming, data query, etc)
·Cost savings
Energy and cost savings result from:
Dimming at off-peak traffic hours
Reduced maintenance costs
Burn hour optimization
Accurate switch ON/OFF
·CO, reductions
Reducing the costs and CO, emissions of streetlights is a necessary
challenge from utilities and distribution companies who face:
Rapidly increased electricity costs
Co, reduction requirements
Growing electricity demands
·Functions
-Cloud-based structure that supports high concurrent data access
-Distributed deployment system which can expand RTU capacity easily
-Fast and seamless access to third-party systems, such as smart city system access
-variety of system security protection strategies to ensure software security and stable operation
-Support a variety of large databases and database clusters, automatic data backup
-Boot self-running service support
-Cloud service technical support and maintenance
Functions Of BOSUN Lighting Smart Pole System
Distributed deployment, extendable RTU space
Keep the entire street lighting system in view
Easy to integrate with the third-party system
Support multiple communication protocols
Convenient management entry
Cloud-based system
Elegant design
Geographic Information System
Smart light pole system
Assets Management
Task Strategy
Choose The Device Needed The Most
Every piece of equipment can be chosen to install, choose the neediest one for your project to maximize the functions and make it cost-effective. Allowing for bespoke configurations to fit diverse urban applications and landscapes.
Experience intelligent urban management with loT integration, enabling real-time monitoring and control for enhanced city operations. Which makes Gebosun® the best smart pole manufacturer.

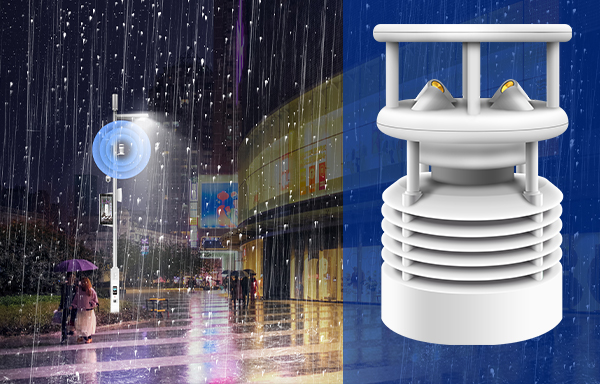

Weather station
●Shell material: ASA engineering plastics
●Response time: less than 30 seconds
●Storage conditions: -40~60℃
●Standard wiring length: 3 meters
●The farthest lead length: RS485 1000 meters
●Stability: less than 1% during the sensor life cycle
●Working environment: temperature -30～70℃, working humidity: 0-100%
●Warm-up time: 30 seconds (SO2NO2COO3 3 hours)
●Working current: DC12V≤40mA(HCD6815)-DC12V≤125mA(HCD6820)
●Power consumption: DC12V≤0.5W(HCD6815); DC12V≤1.5W(HCD6820)
●Life: Except for SO2NO2COO3PM2.5PM10 (1 year in normal environment, high pollution environment is not guaranteed), the life span is not less than 3 years.
LED / LCD Display
-The LED backlight technology is used to combine the A -regulatory screen, color-saturated, uniform brightness, high contrast, delicate screen, long service life
-After rigorous the temperature control box test, the adaptation temperature can be between -30 ° and 80 °. Whether it is winter or summer, it can run stably
-The panel is covered with tempered glass, and the IP65 level level is waterproof and dustproof.
-Use low-power industrial processors to run stable and fast, not stuck
-Outstanding compatibility, stable operation of various systems, compatible with a variety of software, easy to operate, simple, smarter, faster

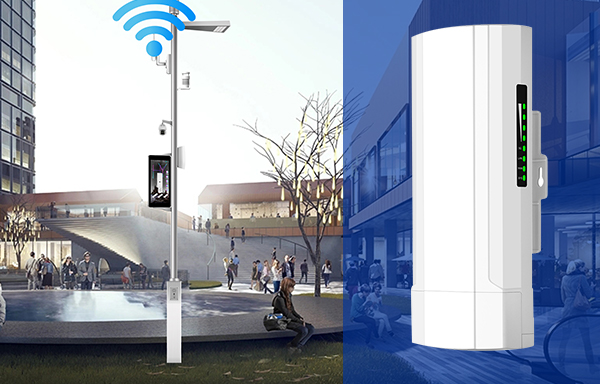

Wireless AP(WIFI)
- 11AC dual-frequency concurrency, the fastest wireless rate can reach 1167 Mbps
- SFP light, the link to the link is more convenient
- Built-in professional sector antennas, suitable for outdoor venues line
- For professional outdoor housing design, the level of anti-tadpoles and dust prevention can reach IP65, and the temperature can reach -30°C ~ -65°C to adapt to various harsh environments
- Excellent radiation frequency adjustment optimizes the overall performance
- Dynamic removal of the signal equipment, avoiding dragging the entire puppet collateral, and improving the performance
- Smart roaming, improve the line experience (11R is not held for the time being, recently updated software support)
- Holding TP-LINK Shangluo Cloud platform centralized management

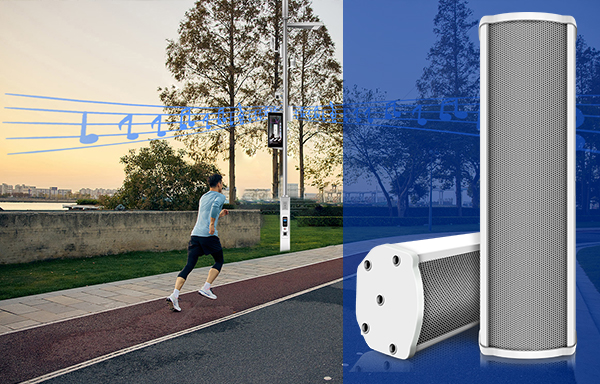

Broadcasting Speaker
· Real-time broadcast, scheduled broadcast and file broadcast.
· Text-to-speech broadcasting and recording broadcasting
· Time-sharing broadcast and alarm broadcast
· Support video linkage (optional)
· IO external contact broadcasting is supported
· Support linkage output
· High-quality loudspeaker
· Spray-painted aluminum alloy shell, car paint process, no rust and more waterproof.
· IP network architecture, spanning network segments and routes
· Monitoring function (camera can be installed)
· Broadcast call function

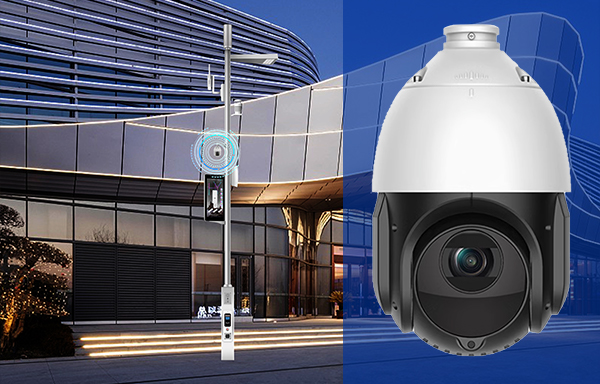

PTZ (outside camera）
·Ultra-low illuminance is supported, 0.005 Lux @F1.6 (color), 0.001 Lux @F1.6 (black and white), 0 Lux with IR.
·Support 485 to read Haikang standard battery power information and perform OSD superposition.
·Support three-bit stream technology, and each bit stream can independently configure the resolution and frame rate.
·Support intelligent detection such as area intrusion detection, cross-border detection, entering area detection and leaving area detection.
·Support Haikang SDK, open network video interface, ISAPI, GB/T28181, ISUP, fluorite.
·Support 4G (Mobile, China Unicom, telecommunications) network transmission, compatible with 3G (Mobile, China Unicom, telecommunications)

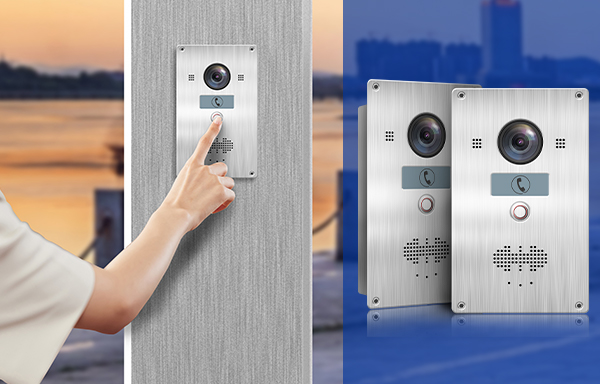

Emergency Call System
2. Full duplex voice intercom, no echo howling;
3. Built-in high sensitivity microphone, 5 meters long-distance intercom;
4. Adopting a dynamic noise reduction algorithm, it can pick up sound clearly in high-noise environments;
5. Advanced digital echo cancellation technology can eliminate the echo and prevent howling;
6. The design of the surrounding waterproof groove is integrated, and it is weatherproof outdoors;
7. Design of lightning protection and automatic power supply recovery device;
8. Waterproof metal button, the button is always on, it can be seen outdoors and at night, and it has 100,000 service lives, which can resist impact and shock.

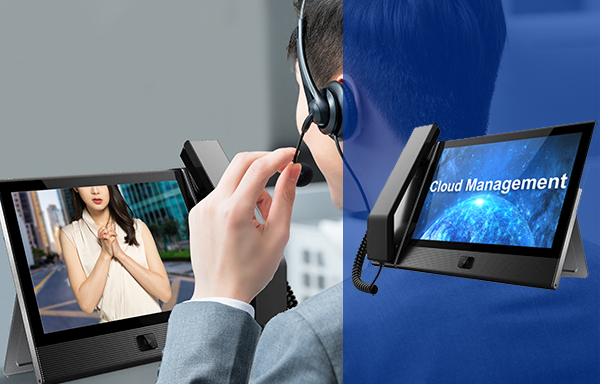

IP video intercom paging console
-Remote control switch.
-Query the device call records.
-Video interface button name is custom-defined.
-Video linkage multi-screen monitoring monitoring function.
-Built-in Wi-Fi and Bluetooth, can access the wireless network, paired Bluetooth headset or mobile phone, allowing users to completely get rid of the desk and greatly improve flexibility. At the same time, mobile terminals can also provide mobile phones / PAD and other mobile terminals to provide wireless hotspots.
-Support HDMI secondary flow input and HDMI dual-screen extension; support USB 2.0 extension.

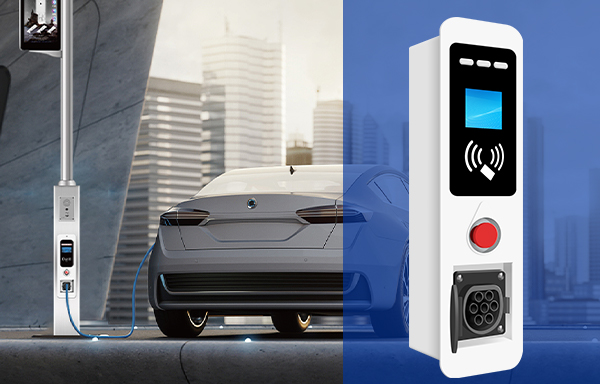

Charging Station
DATA-BOX
Smart Pole Light - 14 Project Reference
13000pcs smart pole project in The Philippines
At the end of 2023. we have finished a big smart pole project in The Philippines, the first project is 9,000 units. It uses our economical smart light poles. The equipment requires display screens, weather stations, WIFI, sound columns, smart street lights, etc. The effect is very good. The project is currently progressing smoothly.
