Material: Aluminium
Working Time: 12 hrs 365 days
365 days Lights up Daily, lights up every night
Grade A IP65 Waterproof Rating
Patent Pro-Double MPPT, Compared with Normal PWM, The efficiency increased by 40%-50%

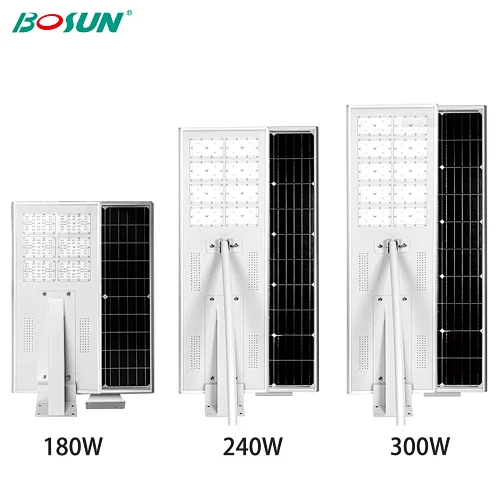

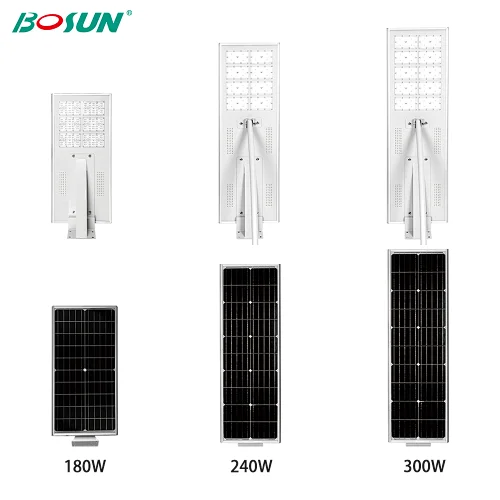

Model | BS-AIO-QBD-180W | BS-AIO-240W | BS-AIO-QBD-300W |
Power | 180W/40W | 240W/60W | 300W/80W |
Solar Panel(Mono) | 40W/10V | 60W/10V | 80W/10V |
Battery(LiFePo4) | 24AH/6.4V | 36AH/6.4V | 48AH/6.4V |
N.W kg | 9.5 | 15 | 25 |
Luminaire size | 735*368*43mm | 1080*368*43mm | 1150*400*165mm |
Inner box size | 835*410*170mm | 1380*368*43mm | 1450*400*165mm |
CCT | 3000K-6500K | ||
Lumens | 180LM/W | ||
Beam angle | 70°*150° | ||
Working mode | Dimming | ||
Working time | 12 Hours | ||
Housing | Die-casting Alumiunm | ||
Installation method | Pole/Wall | ||
Warranty | 3 Years | ||
Controller | Patent PRO-DOUBLE MPPT Solar Charge Controller: 45%-50% higher efficiency than normal PWM controller in the market. Compared to others, our lights are brighter if the watt is the same. 365days dimmable working, Lighting every night |


Packaging: The whole set in one package. One set per carton. With foam for well protection. Wooden case will be added if needed.

Functions:
1. IP65 waterproof level, no fear of rainy day or storm, keep working all night.

2. Patent PRO-DOUBLE MPPT solar controller: The most advanced technology. Charging efficiency increased by 40%-50% compared to normal PWM solar controller. Achieved"All-weather Lighting", dimming automatically according to the battery capacity left.

3. Optional Remote Control:Turn on or turn off, adjust the working mode, adjust the brightness.

Installation Instruction: Two installation methods, install to the wall or the pole.

Application: Park, Green belt, Village road, Pathway, Backyard, Garden, Highway, Expressway, Parking lot, Urban road, Square, Industrial park, Scenic area, Villa area, Playground, Street, Coast road, etc...
